WSO2 Plugin for Treblle
The extension retrieves data from Global Synapse Handler in the API Gateway and creates a payload to send to Treblle. The data is added onto a queue once received and is processed by a worker thread. The worker thread sends the data asynchronously to Treblle, if the data is successfully sent, the data is removed from the queue. If the data is not successfully sent, the worker thread will attempt to send the data again, after 1 retry attempt, the event will be dropped.
Prerequisites
Before you begin, make sure you have:
- Java: Version 8 or later (
java -version
) - Maven: Version 3.6.0 or later (
mvn -version
)
Step 1: Install WSO2 API Manager
- Download the WSO2 API Manager 4.3.0 from the official WSO2 website.

- Unzip the archive:
Terminal window unzip wso2am-4.3.0.zipcd wso2am-4.3.0/bin/./api-manager.sh - Open the Admin Console in your browser:
- URL:
https://localhost:9443/carbon
- Username:
admin
- Password:
admin
- URL:
Step 2: Create an API in WSO2 API Manager
- Log in to the Publisher Portal at
https://localhost:9443/publisher
.

-
Use the default credentials:
- Username:
admin
- Password:
admin
- Username:
-
Create a New API:
- Choose the API type (e.g., REST API, SOAP API).
- Provide details like API Name, Context Path, Version, and Endpoint URL.
- Publish the API.
-
Test the API:
- Log in to the Developer Portal at
https://localhost:9443/devportal/apis
.
- Log in to the Developer Portal at
-

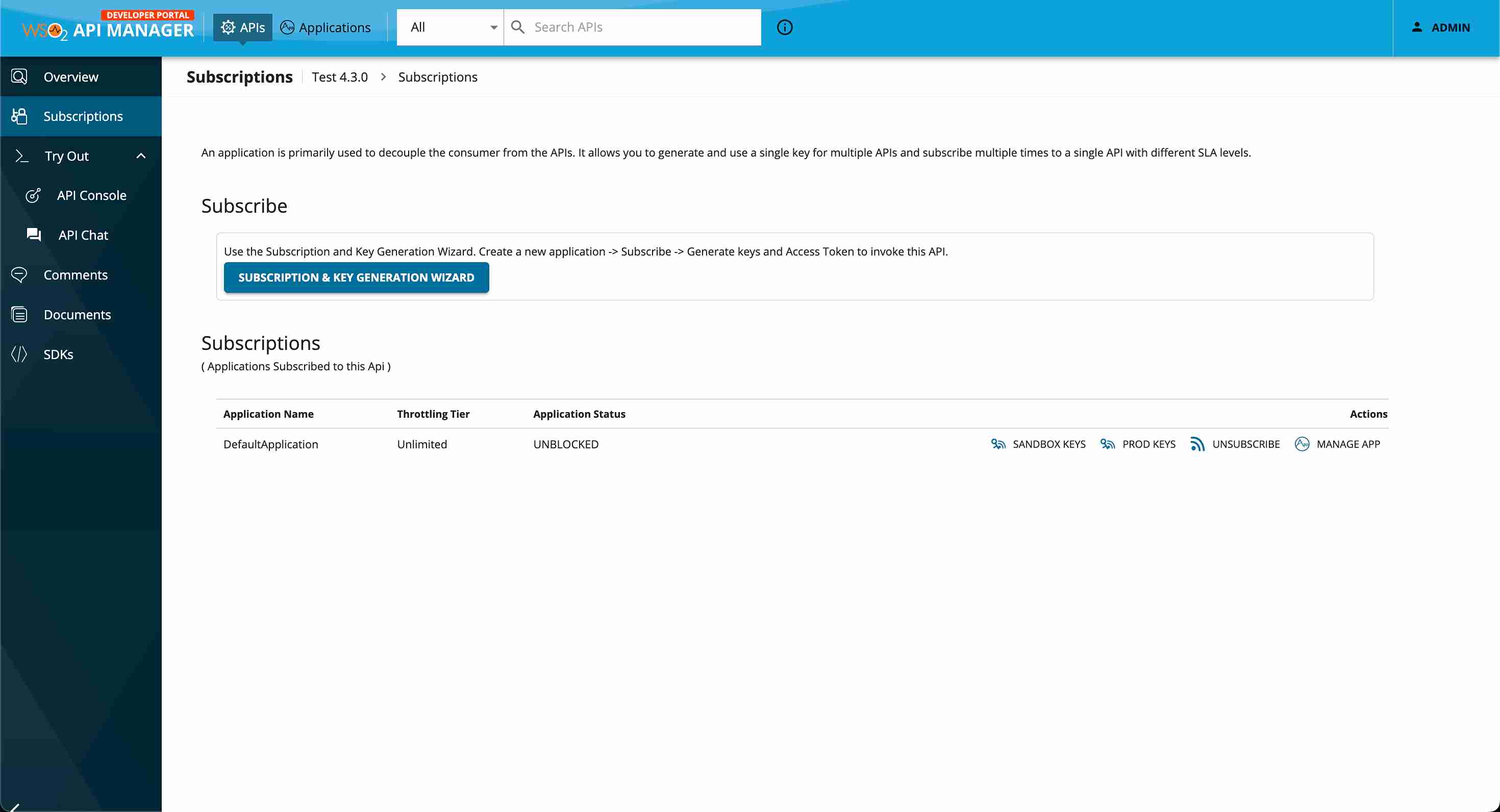

Subscribe to the API:
- Go to the Subscription section.
- Use the Subscription and Key Generation Wizard to generate an access token:
Step 3: Test the API
-
Return to the Developer Portal and locate the API you subscribed to.
-
Click the Try Out option to test your API directly within the portal.
-
Select the key type for testing:
- Sandbox: For testing the API in a non-production environment.
- Production: For live use in production.
-
Choose the method you want to test (e.g.,
GET
). -
Execute the request by providing the required parameters.
Step 4: Set Up Treblle
Follow these steps to integrate Treblle with your WSO2 API Manager:
-
Visit the Treblle website and log in or sign up for an account if you don’t have one.
-
Once logged in, create a new project by providing the following details:
- API Name.
- Base URL.
- Environment.
- Platform.
-
After creating the project, Treblle will generate:
- API Key
- Project ID
These credentials are essential for integrating Treblle with your WSO2 API Manager.
Step 5: Install Treblle Data Publisher Extension
-
Clone the Treblle Data Publisher repository:
Terminal window git clone https://github.com/Treblle/treblle-wso2.gitcd wso2am-4.3.0 -
Build the project:
Terminal window mvn clean installThis will generate the necessary .jar file for the Treblle Data Publisher extension.
-
Copy the generated JAR file to WSO2 API Manager:
Terminal window cp target/treblle-data-publisher-*.jar /path/wso2am-4.3.0/repository/components/lib
Step 6: Configure WSO2 API Manager for Treblle
-
Stop WSO2 if it’s running:
Terminal window cd /path/to/your/wso2am-4.3.0/bin./api-manager.sh stop# Or force kill if needed:# pkill -f "org.wso2.carbon.bootstrap.Bootstrap" -
Update the
deployment.toml
file (Add at the beginning of the file):Terminal window /wso2am-4.3.0/repository/conf/deployment.toml[synapse_handlers.treblle_publisher]enabled=trueclass="com.treblle.wso2publisher.handlers.APILogHandler" -
Update
log4j2.properties
:To enable the logs to populate under the default wso2carbon.log, you can create a custom appender to log the entries to a separate log file.
Terminal window /wso2am-4.3.0/repository/conf/log4j2.propertieslogger.treblle_publisher.name = com.treblle.wso2publisherlogger.treblle_publisher.level = INFOlogger.treblle_publisher.appenderRef.CARBON_LOGFILE.ref = CARBON_LOGFILE -
Set
environment variables
:Open a terminal and add the following environment variables. Alternatively, set these variables in your .bash_profile or .bashrc to make them persistent across sessions.
IMPORTANT: Set these environment variables before starting WSO2. Open a terminal and run:
For MacOS/Linux:
Terminal window # Required variablesexport TREBLLE_API_KEY="your-api-key" # Your Treblle API keyexport TREBLLE_PROJECT_ID="your-project-id" # Your Treblle project IDexport TREBLLE_GATEWAY_URL="your-gateway-url" # Your WSO2 gateway URL# Optional variables with defaultsexport TREBLLE_QUEUE_SIZE=20000 # Max size of the request queueexport TREBLLE_WORKER_THREADS=1 # Number of worker threadsexport ADDITIONAL_MASK_KEYWORDS="Authorization,token" # Fields to maskexport TREBLLE_ENABLED_TENANT_DOMAINS="carbon.super" # Enabled tenant domainsFor Windows:
Terminal window :: Required variablesset TREBLLE_API_KEY=your-api-keyset TREBLLE_PROJECT_ID=your-project-idset TREBLLE_GATEWAY_URL=https://your-wso2-gateway-url:: Optional variablesset TREBLLE_QUEUE_SIZE=20000 :: Default queue sizeset TREBLLE_WORKER_THREADS=1 :: Default worker threadsset ADDITIONAL_MASK_KEYWORDS=Authorization,token :: Default masked fieldsset TREBLLE_ENABLED_TENANT_DOMAINS=carbon.super :: Default tenant domainVerifying Environment Variables:
To check that your environment variables are properly set up for Treblle:
Terminal window # For Linux/macOSecho $TREBLLE_API_KEYecho $TREBLLE_PROJECT_IDecho $TREBLLE_GATEWAY_URL# For Windowsecho %TREBLLE_API_KEY%echo %TREBLLE_PROJECT_ID%echo %TREBLLE_GATEWAY_URL%
Step 7: Configure OAuth2 Authentication
-
To generate an OAuth2 Token, log in to the Developer Portal at
https://localhost:9443/devportal
. -
Under the Subscription section, click on your created application.
-
Select either Production or Sandbox as the key type.
-
Click Generate Key for the chosen environment and copy the generated access token.
-
This token is essential for accessing protected resources in your API.
Step 8: Verify Treblle Integration
-
Check WSO2 logs for Treblle activity:
Terminal window tail -f /path/to/your/wso2am-4.3.0/repository/logs/wso2carbon.log | grep -i treblle -
Look for success messages (not 403 Forbidden errors):
- ✅ Good:
Event successfully published.
- ❌ Bad:
Event publishing failed for project id: your-project-id with status code: 403
- ✅ Good:
-
Check your Treblle dashboard to see captured API requests.
Troubleshooting
Common Issues and Solutions:
1. Database Lock Error:
# Kill any running WSO2 processespkill -f "org.wso2.carbon.bootstrap.Bootstrap"
# Remove lock filescd /path/to/your/wso2am-4.3.0/repository/database/rm -f *.lock *.lck *.tmp
2. 403 Forbidden Errors in Logs:
- Verify your Treblle credentials are correct
- Make sure you’re using actual API key and project ID, not placeholder text
- Check that
TREBLLE_GATEWAY_URL
contains only the base URL
3. Extension Not Loading:
- Ensure the JAR file is in the correct location:
/repository/components/lib/
- Verify the
deployment.toml
configuration is at the beginning of the file - Check that log4j2.properties has been updated correctly
4. SSL Certificate Issues:
- Use the
-k
flag with cURL for testing - In Postman, disable SSL certificate verification in settings
- For development, you can use HTTP port 8280 instead of HTTPS 8243
5. View detailed logs:
# View all WSO2 logstail -f /path/to/your/wso2am-4.3.0/repository/logs/wso2carbon.log
# Filter for Treblle-specific logstail -f /path/to/your/wso2am-4.3.0/repository/logs/wso2carbon.log | grep "treblle\|PublisherClient\|APILogHandler"
Example API Testing Commands
Here are example curl commands for different HTTP methods:
GET Request:
curl -k -X GET \ "https://localhost:8243/test/v1" \ -H "Authorization: Bearer YOUR_ACCESS_TOKEN"
POST Request:
curl -k -X POST \ "https://localhost:8243/user-management/v1/users" \ -H "Authorization: Bearer YOUR_ACCESS_TOKEN" \ -H "Content-Type: application/json" \ -d '{"email": "john.doe@example.com", "first_name": "John", "last_name": "Doe"}'
PUT Request:
curl -k -X PUT \ "https://localhost:8243/user-management/v1/users/1" \ -H "Authorization: Bearer YOUR_ACCESS_TOKEN" \ -H "Content-Type: application/json" \ -d '{"email": "john.doe@example.com", "first_name": "John", "last_name": "Smith"}'
DELETE Request:
curl -k -X DELETE \ "https://localhost:8243/user-management/v1/users/1" \ -H "Authorization: Bearer YOUR_ACCESS_TOKEN"
Dashboard Overview
The Treblle dashboard provides real-time insights into API requests, compliance checks, and potential issues.

Customize the View: Use the customization options at the top right of the dashboard to tailor the information displayed according to your needs.

Detailed API Request Logs
Request List: View a detailed list of API requests, including key metrics and diagnostic information.

Inspect Individual Requests:

That’s it!
Your WSO2 API Manager is now integrated with Treblle. All API requests will be automatically captured and sent to your Treblle dashboard.
