Metadata

Treblle Metadata allows you to send additional contextual information about your API requests, enabling you to correlate your key business metrics with the API data, usage, and insights that Treblle provides.

Through metadata, you can pass information that ties into your business logic, helping you filter and analyze API data with more specificity and context.

What is Treblle Metadata?

Metadata in Treblle is additional information you can attach to each API request to provide business context. This could include:

Company identifiers to track which organization made the request
User information to understand individual user behavior
Customer data to analyze usage patterns by customer segment
Environment tags to differentiate between development, staging, and production
Custom business identifiers like transaction IDs, campaign codes, or feature flags

Why Use Treblle Metadata?

By sending metadata to Treblle, you can:

Correlate business metrics with API performance and usage
Filter requests by specific business criteria
Analyze API usage by customer, company, or user segments
Track feature adoption across different user groups
Monitor environment-specific API behavior
Debug issues with better business context

How Metadata Works

Metadata is sent by adding a treblle-metadata header to your API requests. The value should be a stringified JSON object containing key-value pairs with your business context.

Implementation Format

You need to append the treblle-metadata header to your API request calls with a stringified JSON object:

// Example API request headers
const headers = {
    "Host": "api.yourservice.com",
    "Accept-Encoding": "br;q=1.0, gzip;q=0.9, deflate;q=0.8",
    "Accept-Language": "en;q=1.0, hr-US;q=0.9",
    "User-Agent": "Mozilla/5.0 (Windows NT 10.0; Win64; x64) Edg/91.0.864.48",
    "Content-Type": "application/json",
    'treblle-metadata': JSON.stringify({
        'trace-id': 'seeder-we3e3er321e312e2',
        'env-id': 'development',
        'user-id': 'rahul',
        'x-customer-id': 'rah1510',
        'custom-username': 'rahul-1503',
    })
};

How Headers Are Transmitted

When you use JSON.stringify(), the metadata object gets converted to an escaped JSON string. Here’s what actually gets sent in the HTTP headers:

{
  "accept-encoding": "br;q=1.0, gzip;q=0.9, deflate;q=0.8",
  "accept-language": "en;q=1.0, hr-US;q=0.9",
  "authorization": "Bearer 5940100",
  "cache-control": "no-cache",
  "cookie": "XSRF-TOKEN=8648303; treblle_session=4239811",
  "host": "test.treblle.com",
  "user-agent": "Mozilla/5.0 (X11; U; Linux armv7l like Android; en-us) AppleWebKit/531.2+ (KHTML, like Gecko) Version/5.0 Safari/533.2+ Kindle/3.0+",
  "treblle-metadata": "{\"tag-id\":\"2ef634ed-1875-473b-a06a-1b6dd354db93\",\"trace-id\":\"seeder-817ee077-6436-4aa0-ae8d-21381c32745e\",\"env-id\":\"develpment\",\"user-id\":\"I5paNJD0miydDAJ\",\"x-customer-id\":\"sdwfer2332\",\"treblle-username\":\"rahul\",\"company_gv2iK\":\"IeiulI0mpf\",\"company_5FasU\":\"zKhfdvPaxq\",\"company_8r6nP\":\"a2fUftO0Pk\",\"company_joJhj\":\"EGGJeDyiHz\",\"company_b1FG7\":\"PDd3mVj6Aj\"}"
}

You can see this exact format in the Treblle dashboard when inspecting request headers:

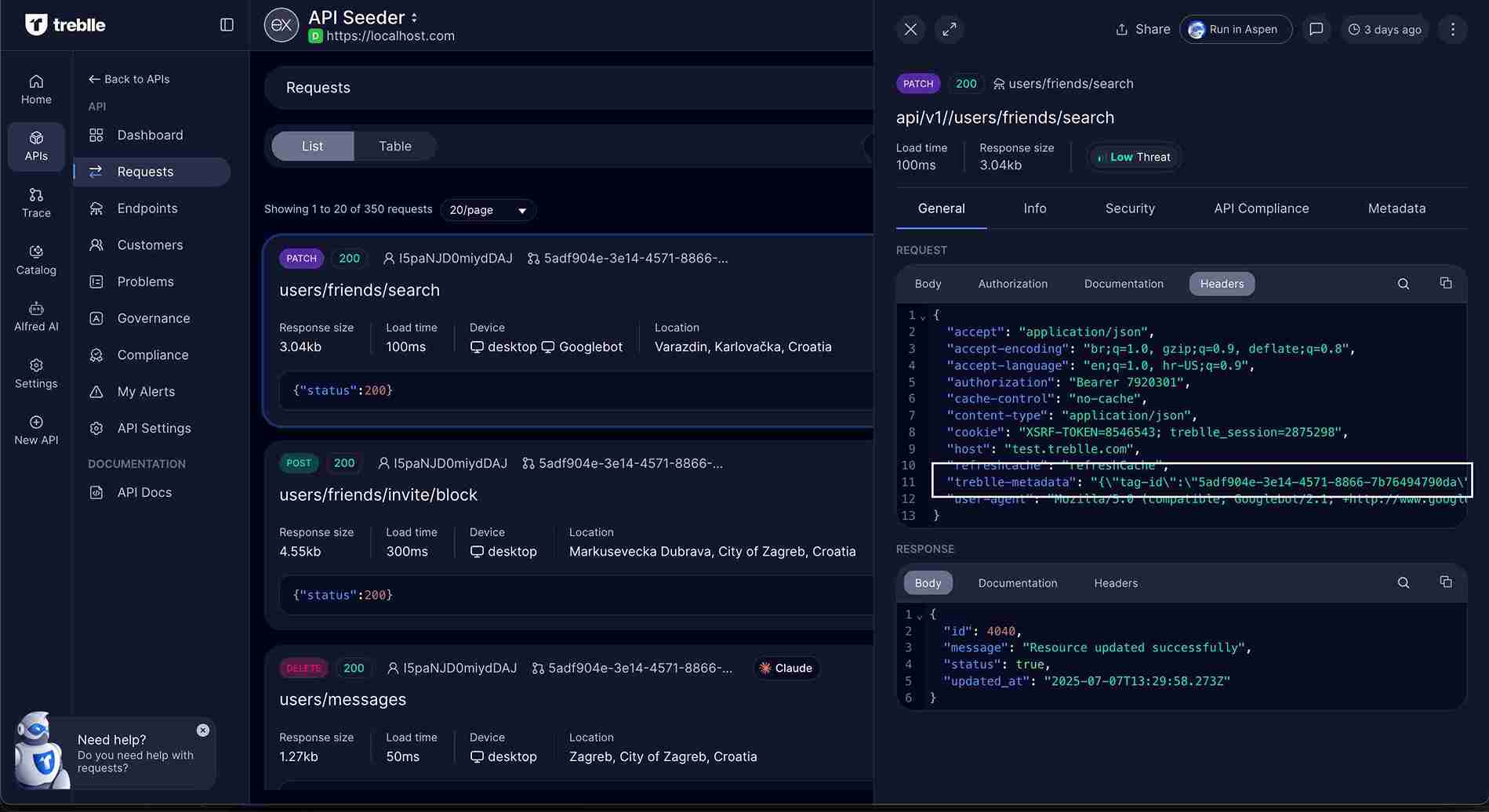

The screenshot shows the treblle-metadata header highlighted in line 11, containing the escaped JSON string exactly as transmitted by the client.

Key Points

The header name is exactly treblle-metadata
The value must be a stringified JSON using JSON.stringify()
HTTP headers are key-value pairs where values are strings, numbers, or booleans
The JSON object gets escaped and sent as a single string value
The JSON should contain flat key-value pairs (no nested objects)
Maximum 2000 characters total for the entire stringified JSON

Special Metadata Fields

Some metadata fields have special meaning in Treblle:

Trace ID

Field: trace-id
Purpose: Used for API Traceability to group and track related requests across multiple services in the Trace section
Note: tag-id is still supported for backward compatibility, but trace-id is recommended going forward

Trace ID Priority

If you send a trace ID both as a root header and within the metadata object, the one in metadata will override the root header:

const headers = {
    'trace-id': 'seeder-3',  // Root header
    "Host": "test.treblle.com",
    "Accept-Encoding": "br;q=1.0, gzip;q=0.9, deflate;q=0.8",
    "Accept-Language": "en;q=1.0, hr-US;q=0.9",
    "User-Agent": "Mozilla/5.0 (Windows NT 10.0; Win64; x64) Edg/91.0.864.48",
    "Refreshcache": "refreshCache",
    'treblle-metadata': JSON.stringify({
        'trace-id': 'seeder-we3e3er321e312e2',  // This will override the root header
        'env-id': "development",
        'user-id': 'rahul',
        'x-customer-id': 'rahul1510',
        'custom-username': 'rahul-1503',
    }),
};

In this example, the final trace ID will be seeder-we3e3er321e312e2 (from metadata), not seeder-3 (from root header).

User ID

Field: user-id
Purpose: Links requests to the Customer Dashboard for user-specific analysis and appears in the Customers section
Use case: Track API usage patterns by individual users and customers

Custom Business Fields

All other metadata fields appear in the Metadata section of request details and can be used for filtering, allowing you to:

Filter requests by any custom business identifier
Track custom business identifiers and values
Add environment, campaign, or feature flag information
Store any business-relevant data for analysis and debugging

Metadata Requirements and Limitations

Format Requirements

Must be valid JSON: The metadata must be properly formatted JSON
Flat structure only: No nested objects or arrays are allowed
Key-value pairs: Only simple key-value pairs are supported

Size Limitations

Maximum 2000 characters: The entire metadata JSON string cannot exceed 2000 characters
Reasonable key names: Use descriptive but concise key names to maximize available space

Valid Metadata Example

{
  "trace-id": "abc-123-def",
  "user-id": "user123",
  "company": "acme-corp",
  "environment": "production",
  "version": "v2.1",
  "feature": "beta-checkout"
}

Invalid Metadata Example

{
  "user": {
    "id": "123",
    "name": "John"
  },
  "tags": ["important", "urgent"]
}

Viewing Metadata in Treblle

Once you’ve implemented metadata, you can view it in several places within Treblle:

Request Details - Headers Tab

Go to the Requests section
Click on any request to view details
Navigate to the Headers tab to see the raw treblle-metadata header

In the Headers section, you can see the treblle-metadata header containing the stringified JSON with all your custom metadata fields.

Request Details - Metadata Tab

Go to the Requests section
Click on any request to view details
Navigate to the Metadata tab to see all parsed metadata fields in a clean interface

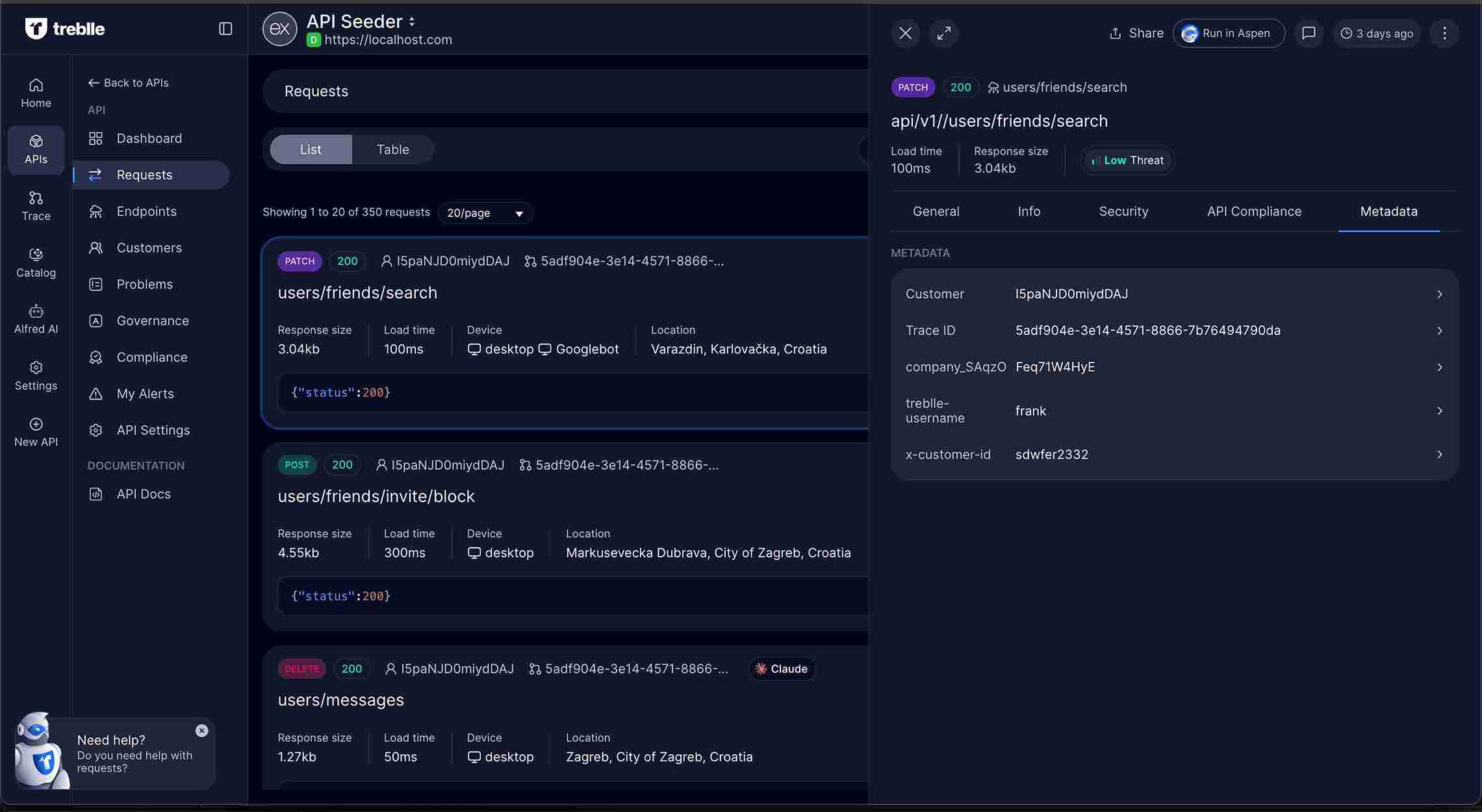

The Metadata tab displays each metadata field as a separate, easy-to-read entry:

Customer: Shows the user-id field value - this will populate the Customer Dashboard
Trace ID: Displays the trace-id for API Traceability - this groups related requests together
Custom Fields: All other metadata fields like company_SAqzO, treblle-username, x-customer-id, etc. - these can be used for filtering requests

Customer Dashboard

Requests with user-id metadata will automatically appear in the Customers section, allowing you to:

Track individual customer API usage
Analyze customer behavior patterns
Monitor customer-specific issues

API Traceability

Requests with trace-id metadata will be grouped together in the Trace section, enabling you to:

Follow requests across multiple services
Understand complete transaction flows
Debug complex distributed system interactions

Custom Filtering

All other metadata fields become available for filtering and analysis:

Filter requests by company, environment, or any custom identifier
Analyze API usage by business segments
Debug issues with specific business context
