Monitoring API Compliance

Scenario: You need to monitor API compliance with data protection regulations (GDPR, HIPAA, PCI DSS, CCPA), review security posture, track governance scores, and ensure sensitive data is properly masked.

Features Used:

• API Compliance
• Data Masking
• API Security
• API Governance

Overview

As a compliance officer, you need to:

1. Monitor Compliance Status: Track API compliance with GDPR, CCPA, PCI DSS, and HIPAA
2. Review Non-Compliant Requests: Identify and analyze requests that fail compliance checks
3. Track Security Checks: Monitor the 13 security checks Treblle performs on every request
4. Assess Governance Quality: Review API governance scores and categories
5. Ensure Data Masking: Verify sensitive fields are masked at the SDK level

This workflow demonstrates how to use Treblle’s compliance monitoring features to track regulatory compliance.

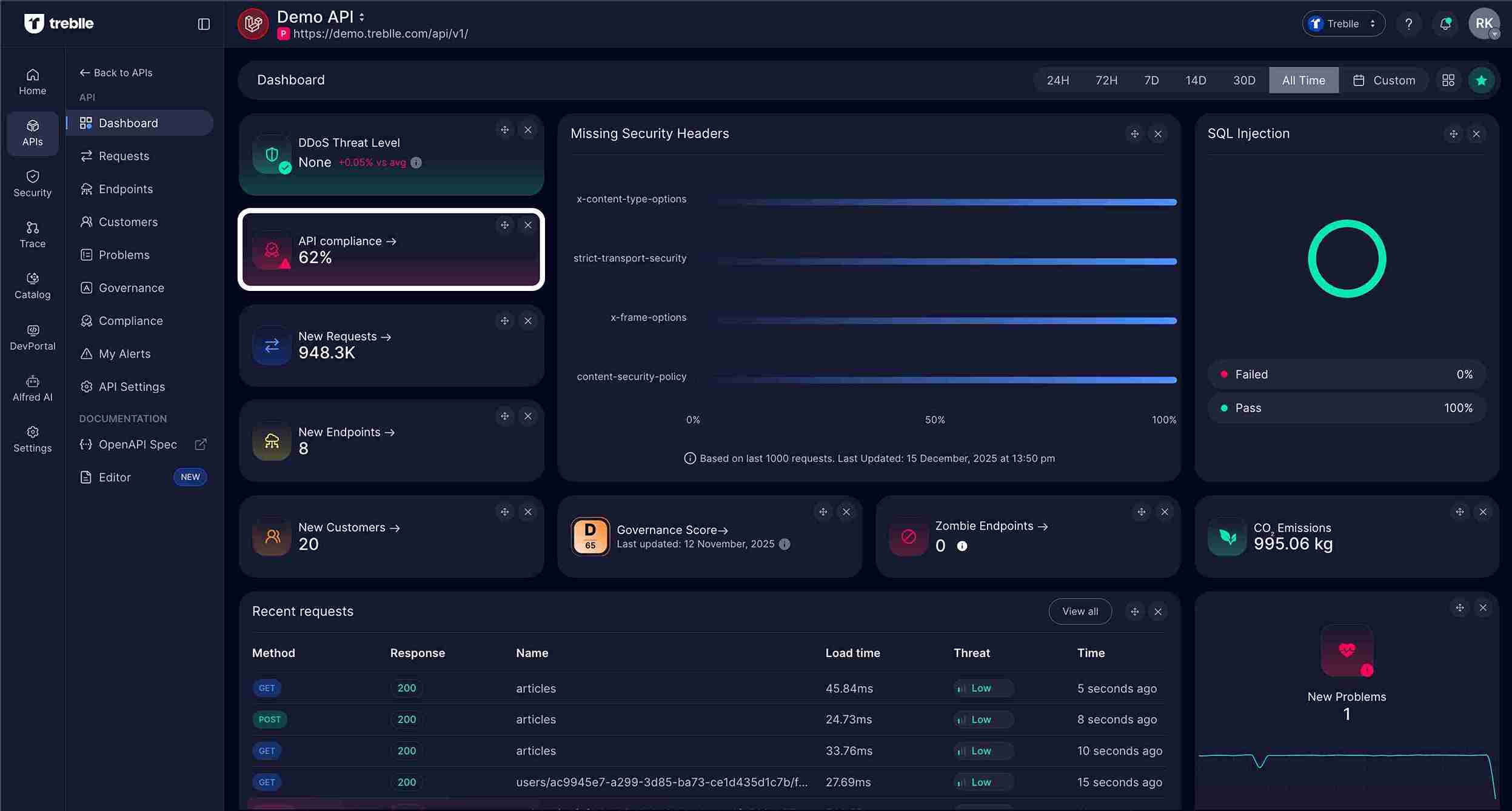

Step 1: Check API Compliance Dashboard

The API Compliance dashboard provides an overview of your API’s compliance status.

Navigate to Compliance Dashboard

1. After logging into Treblle, go to the Dashboard
2. The API Compliance percentage shows your overall compliance status

The dashboard shows:

• API compliance widget with percentage (e.g., 62%)

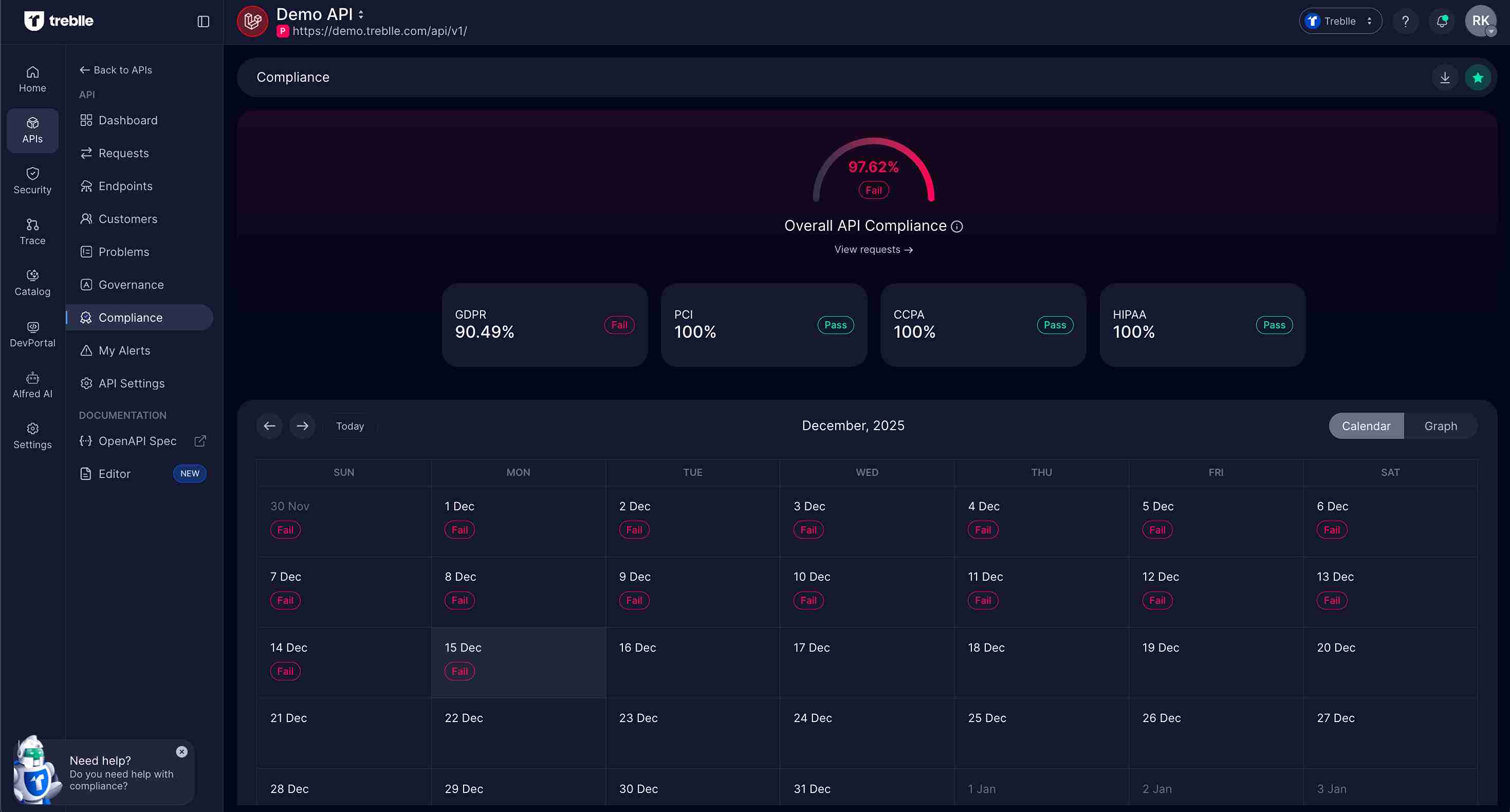

Access Detailed Compliance View

1. Click the Compliance tab in the left-hand menu
2. You’ll see the compliance dashboard with two view options:
   • Calendar View: Daily compliance tracking
   • Graph View: Trend analysis over time

The compliance overview displays:

• Overall API Compliance: Circular gauge showing percentage (97.62% in the example)
• Fail indicator if below threshold
• View requests link to see non-compliant requests

Understanding Compliance Metrics

The compliance percentage is broken down by regulation:

• GDPR: 90.49% (Fail indicator) - Personal data handling checks
• PCI: 100% (Pass) - Payment card data security
• CCPA: 100% (Pass) - California consumer privacy
• HIPAA: 100% (Pass) - Health information security

Step 2: Review Compliance by Day

Use the Calendar View to track daily compliance and identify problematic periods.

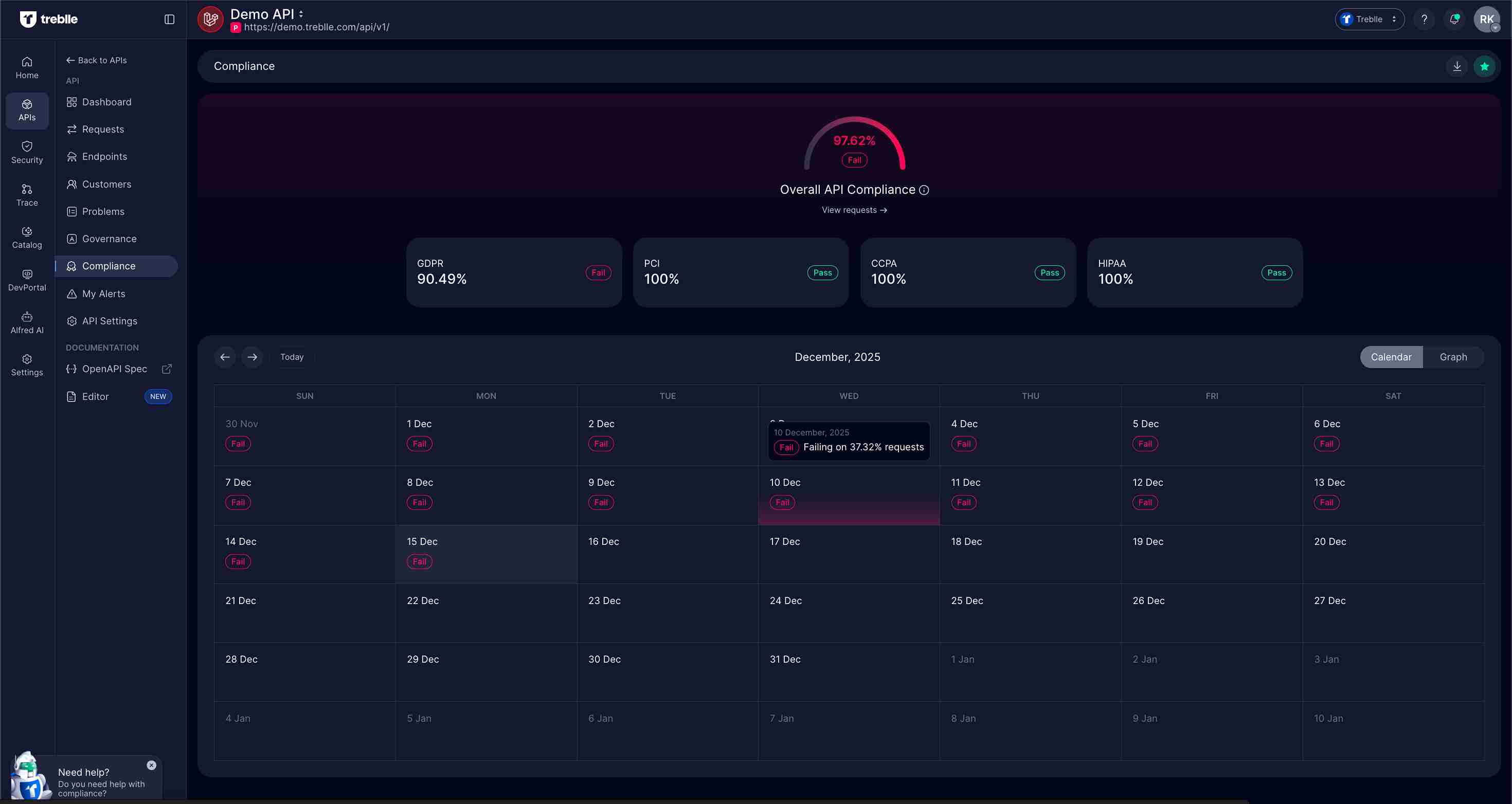

Using Calendar View

1. In the Compliance section, ensure you’re in Calendar View
2. Hover over any date to see the compliance percentage for that day

The Calendar View shows:

• Each date with a Fail indicator (red badge)
• Hover tooltip showing compliance percentage (e.g., “16 December, 2025: Failing on 37.32% requests”)
• Monthly view for December 2025
• Navigation arrows to switch months

View Non-Compliant Requests

1. Click on any date in the calendar
2. See all requests flagged as non-compliant for that specific day

This shows:

• Filter applied: Date: 2025-12-10 and Compliance: Fail
• Which requests failed compliance checks
• The specific compliance violations
• Request details for investigation (Method, Response, Name, Load time, Threat, Device, AI Agent, Location, Time)

Using Graph View

Switch to Graph View to monitor compliance trends:

The graph shows:

• Percentage of Failed Requests over time
• Bar chart for each day in December 2025
• Y-axis showing 0% to 100%
• Easy visualization of compliance trends and patterns

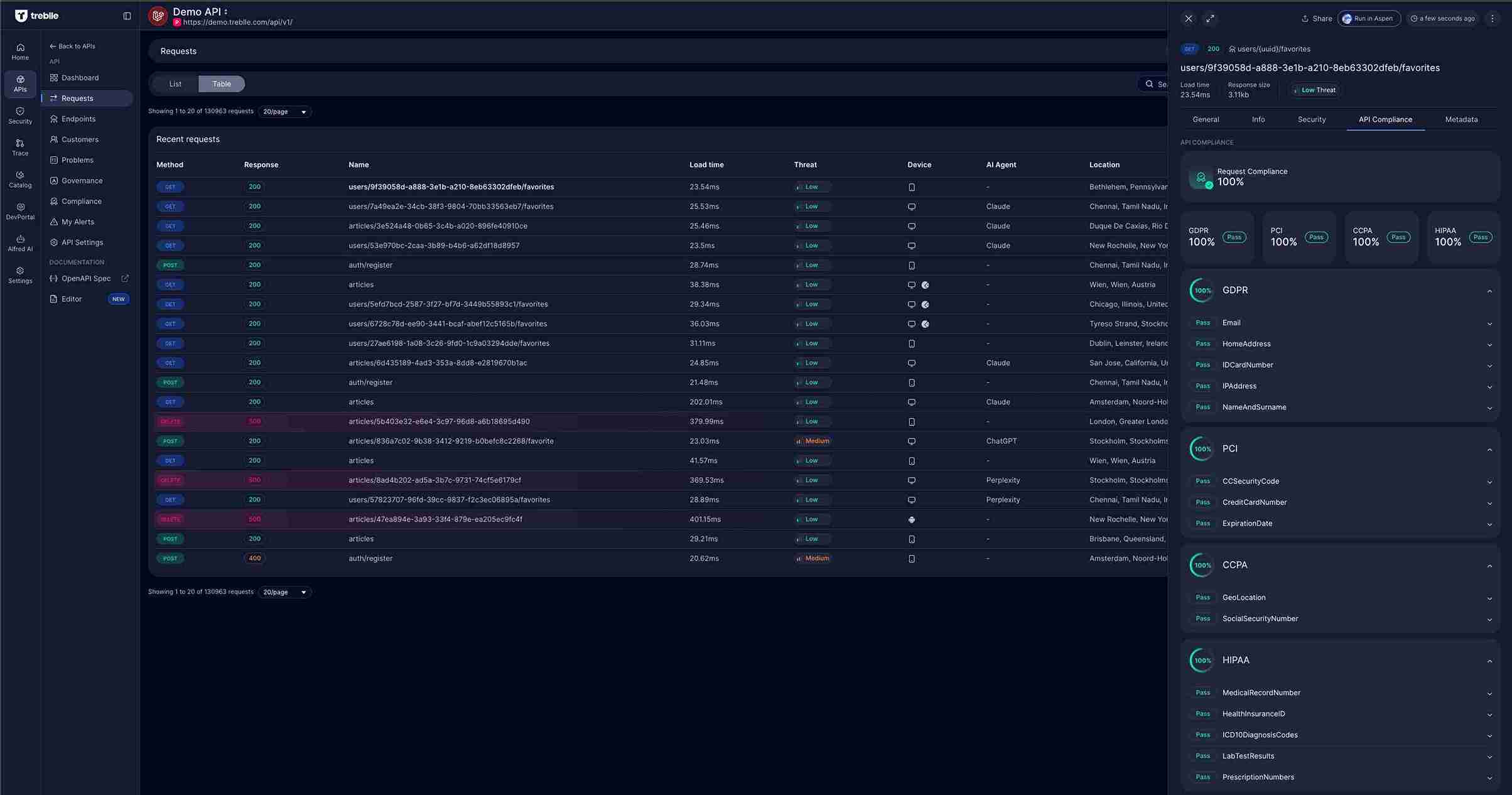

Step 3: Analyze Individual Request Compliance

Review detailed compliance checks for specific requests.

Navigate to Request Compliance

1. Go to Requests section
2. Click on any request to open detailed view
3. Navigate to the API Compliance tab

Understanding Request Compliance Score

Each request displays:

Request Compliance Score:

• 100% with green checkmark = “Request Compliance”
• Overall compliance for this specific request

Individual Regulation Checks:

The right panel shows expandable sections for each regulation:

GDPR (100% - Pass):

• Email
• HomeAddress
• IDCardNumber
• IPAddress
• NameAndSurname

PCI (expandable):

• Payment card data security checks

CCPA (expandable):

• GeoLocation
• SocialSecurityNumber

HIPAA (expandable):

• MedicalRecordNumber
• HealthInsuranceID
• ICD10DiagnosisCodes
• LabTestResults
• PrescriptionNumbers

Detailed Information:

• Each regulation shows specific fields checked
• Pass indicators (green) for compliant fields
• Click on any regulation to expand and see all checks performed

Compliance Checks Overview

Treblle validates requests against multiple standards to ensure:

• Personal data is handled correctly (GDPR)
• Payment information is secured (PCI)
• Privacy requirements are met (CCPA)
• Health information is protected (HIPAA)

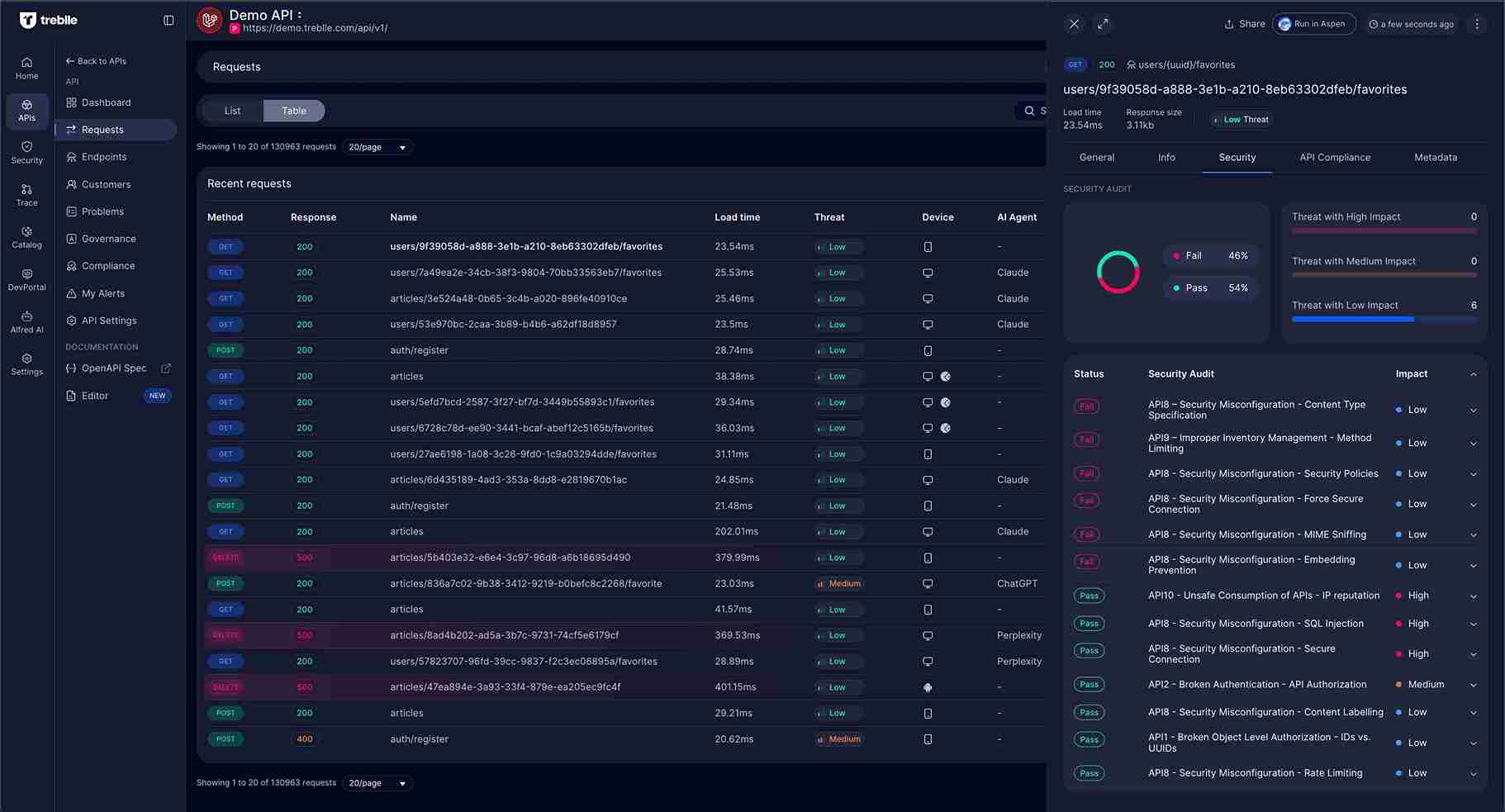

Step 4: Monitor Security Checks

Treblle performs 13 automated security checks on every API request.

View Security in Requests

1. Go to Requests section
2. Click on any request
3. Navigate to the Security tab

The Security tab displays:

Security Audit Graph:

• Donut chart showing 46% Fail, 54% Pass
• Threat with High Impact: 0
• Threat with Medium Impact: 0
• Threat with Low Impact: 6

Security Audit List: All 13 security checks with Status (Fail/Pass), Security Audit name, and Impact level:

• API8 - Security Misconfiguration - Content Type Specification (Fail, Low)
• API9 - Improper Inventory Management - Method Limiting (Fail, Low)
• API8 - Security Misconfiguration - Security Policies (Fail, Low)
• API8 - Security Misconfiguration - Force Secure Connection (Fail, Low)
• API8 - Security Misconfiguration - MIME Sniffing (Fail, Low)
• API8 - Security Misconfiguration - Embedding Prevention (Fail, Low)
• API10 - Unsafe Consumption of APIs - IP reputation (Pass, High) ← Expanded showing detailed explanation

Security Threat Levels

Requests are categorized into three threat levels:

Low Threat Level (Low Impact):

• IDs vs UUIDs
• Rate Limiting
• Content Labeling
• MIME Sniffing Protection
• Force Secure Connection
• Embedding Prevention
• Security Policies
• Content-Type Specification
• Method Limiting

Medium Threat Level:

• Authorization issues

High Threat Level (High Impact):

• SQL Injection
• IP Reputation
• Secure Connection (HTTPS enforcement)

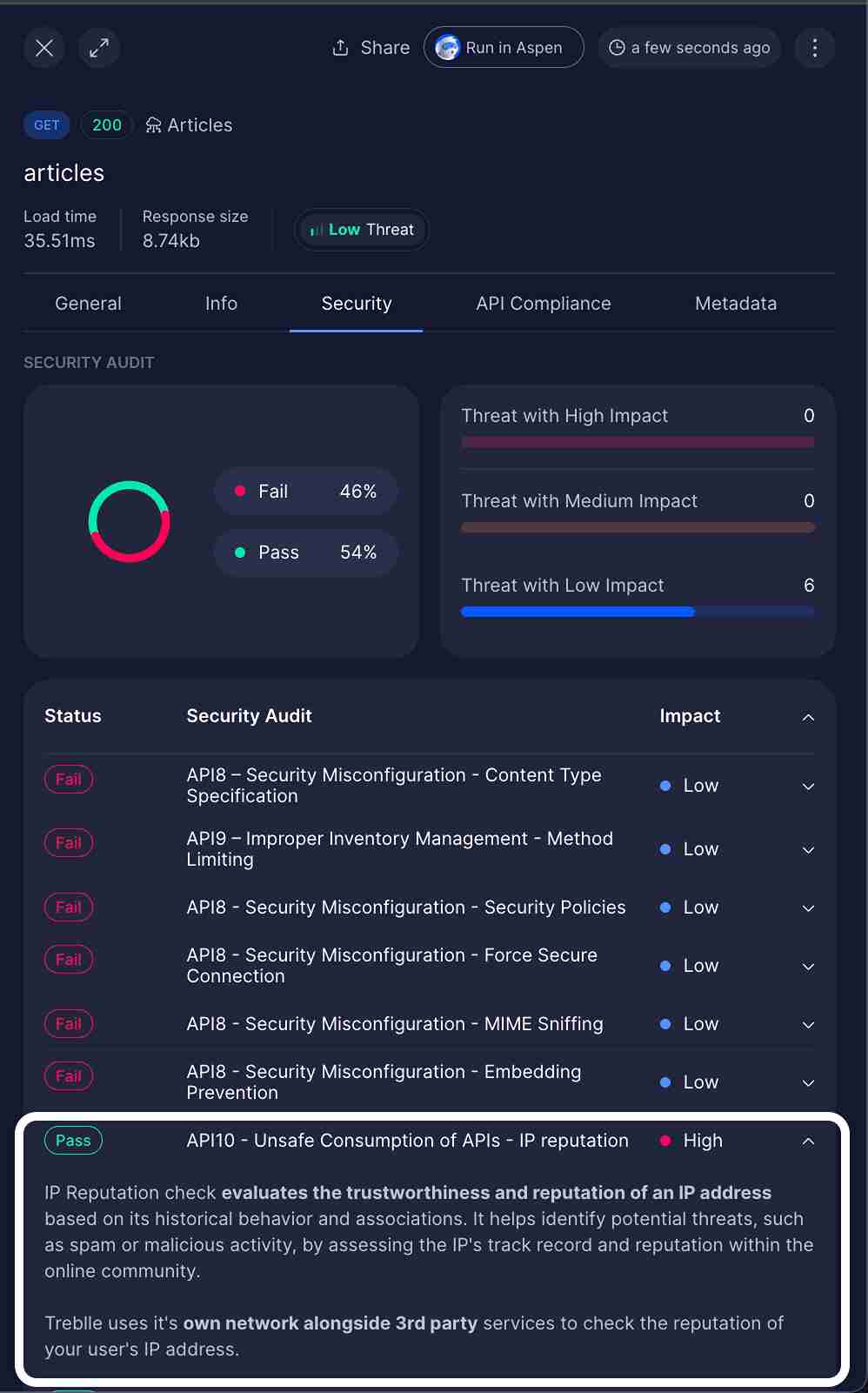

Understanding IP Reputation Check

When you expand the IP reputation check (API10), you see:

IP Reputation check evaluates the trustworthiness and reputation of an IP address based on its historical behavior and associations. It helps identify potential threats, such as spam or malicious activity, by assessing the IP’s track record and reputation within the online community.

Treblle uses it’s own network alongside 3rd party services to check the reputation of your user’s IP address.

Step 5: Review API Governance Score

API Governance measures how well your APIs follow best practices and standards.

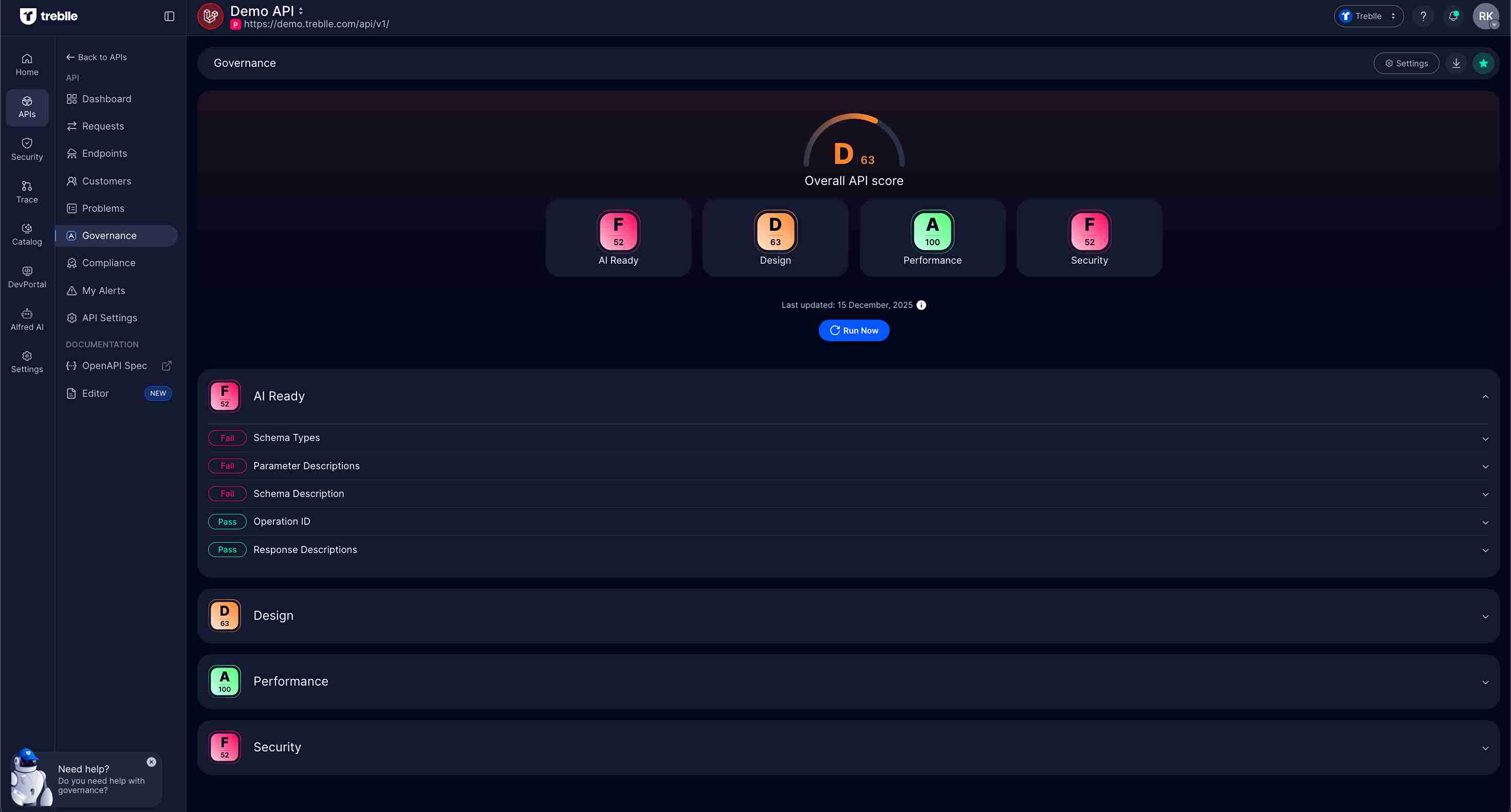

Navigate to API Governance

1. Click on Governance in the left navigation bar (API level)
2. View your overall governance dashboard

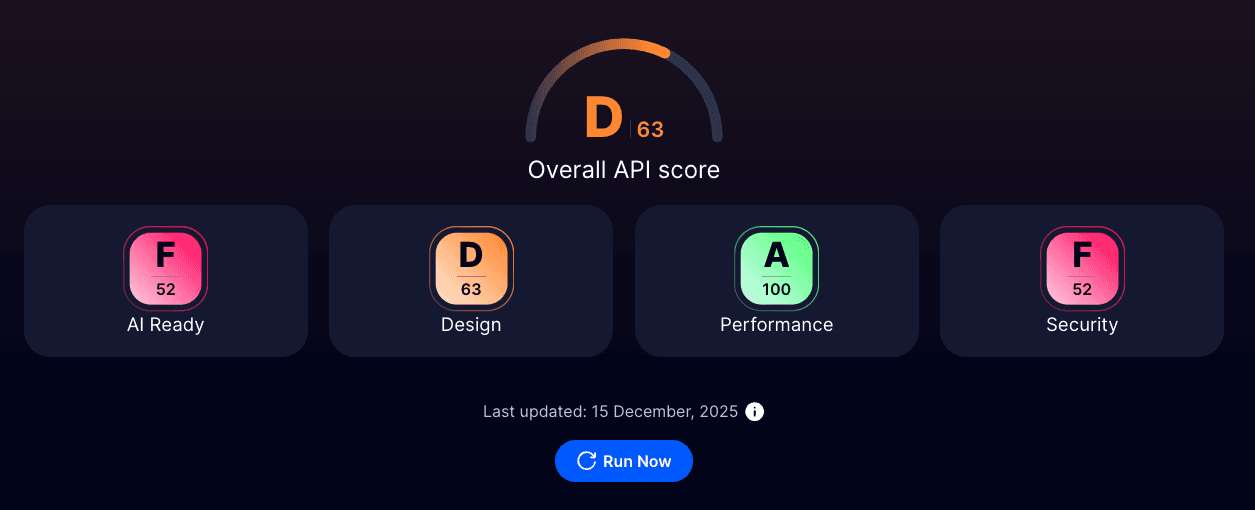

Understanding Governance Score

Treblle assigns:

• Overall API Score: D 63 (out of 100)
• Grade: Letter grade from A to F
• Last updated: Timestamp showing when scores were calculated
• Run Now button to recalculate scores

The score is based on four main categories:

Category Scores:

• AI Ready: F (52) - Pink badge
• Design: D (63) - Orange badge
• Performance: A (100) - Green badge
• Security: F (52) - Pink badge

1. AI Ready Category

Ensures your API can integrate with AI systems:

• Schema Types (Fail)
• Parameter Descriptions (Fail)
• Schema Description (Fail)
• Operation ID (Pass)
• Response Descriptions (Pass)

2. Design Category

Checks API structure and usability (collapsed - click to expand for details):

• Contact Information
• Operation Descriptions or Summaries
• Robust Responses
• Examples Exist
• Consistent Pluralization
• Consistent Noun Usage
• JSON Support
• Information Descriptions
• Rate Limiting
• Versioning

3. Performance Category

Ensures APIs are fast and optimized (collapsed - click to expand):

• Load Time
• Compression Support
• CDN Usage
• HTTP2 Usage
• Cache Support

4. Security Category

Verifies security best practices (collapsed - click to expand):

• Insecure Direct Object Reference (IDOR) Risks
• Content Type Options
• iFrame Embedding
• Strict Transport Security (HSTS)
• Content Security Policy
• Operation Enforces Security Scheme
• Authorization
• Secure URLs (HTTPS)
• Security Field Contains a Scheme
• Global Security Field is Defined

Step 6: Monitor DDoS Threats

Treblle automatically detects potential DDoS attacks by monitoring traffic spikes.

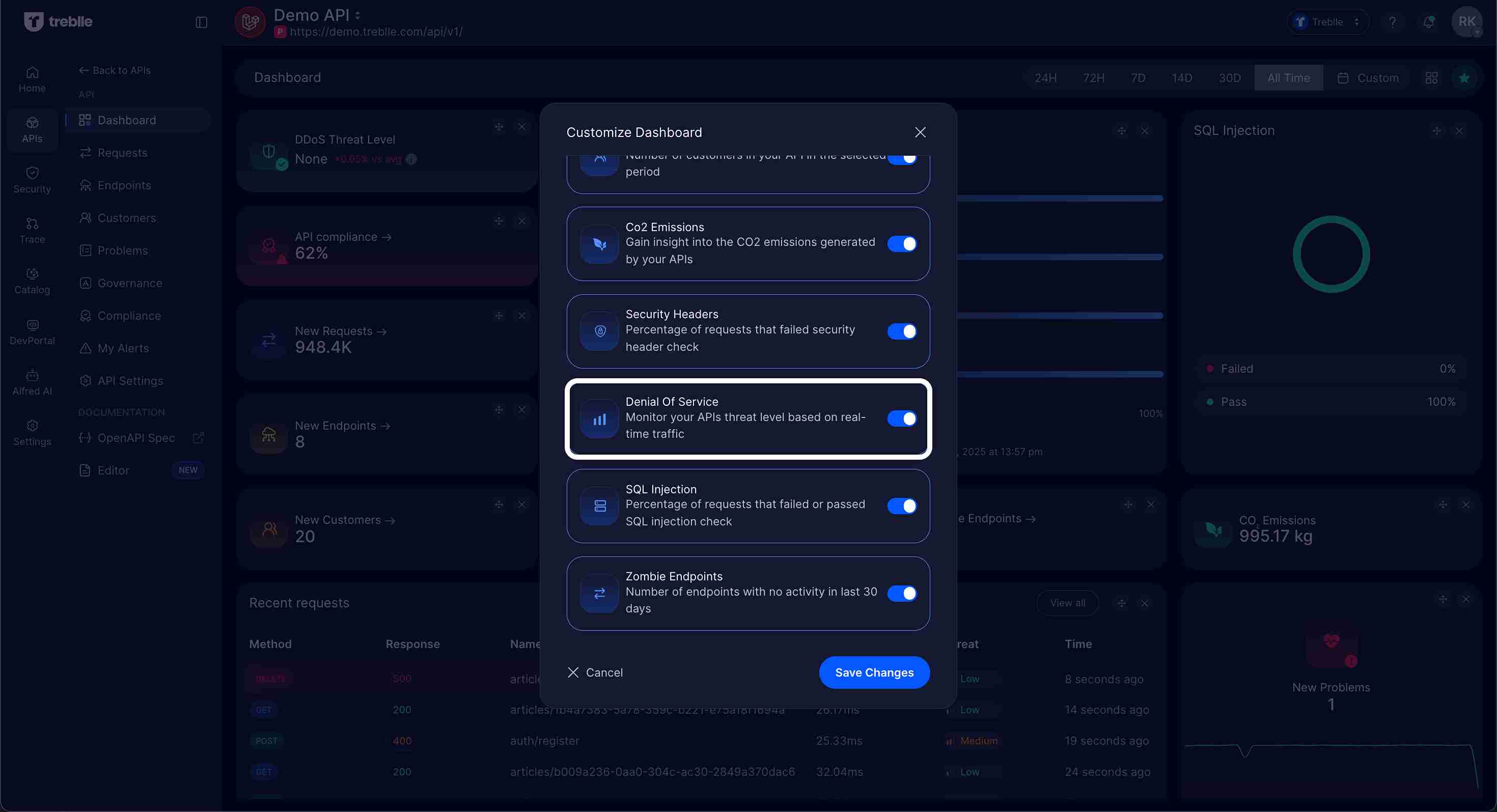

Enable DDoS Monitoring Widget

1. Go to your API Dashboard
2. Click Customize Dashboard (four squares icon)
3. Find and enable the “Denial of Service” widget

The Customize Dashboard dialog shows:

• Denial of Service widget with description: “Monitor your APIs threat level based on real-time traffic”
• Toggle switch (blue) to enable/disable
• Click Save Changes to apply

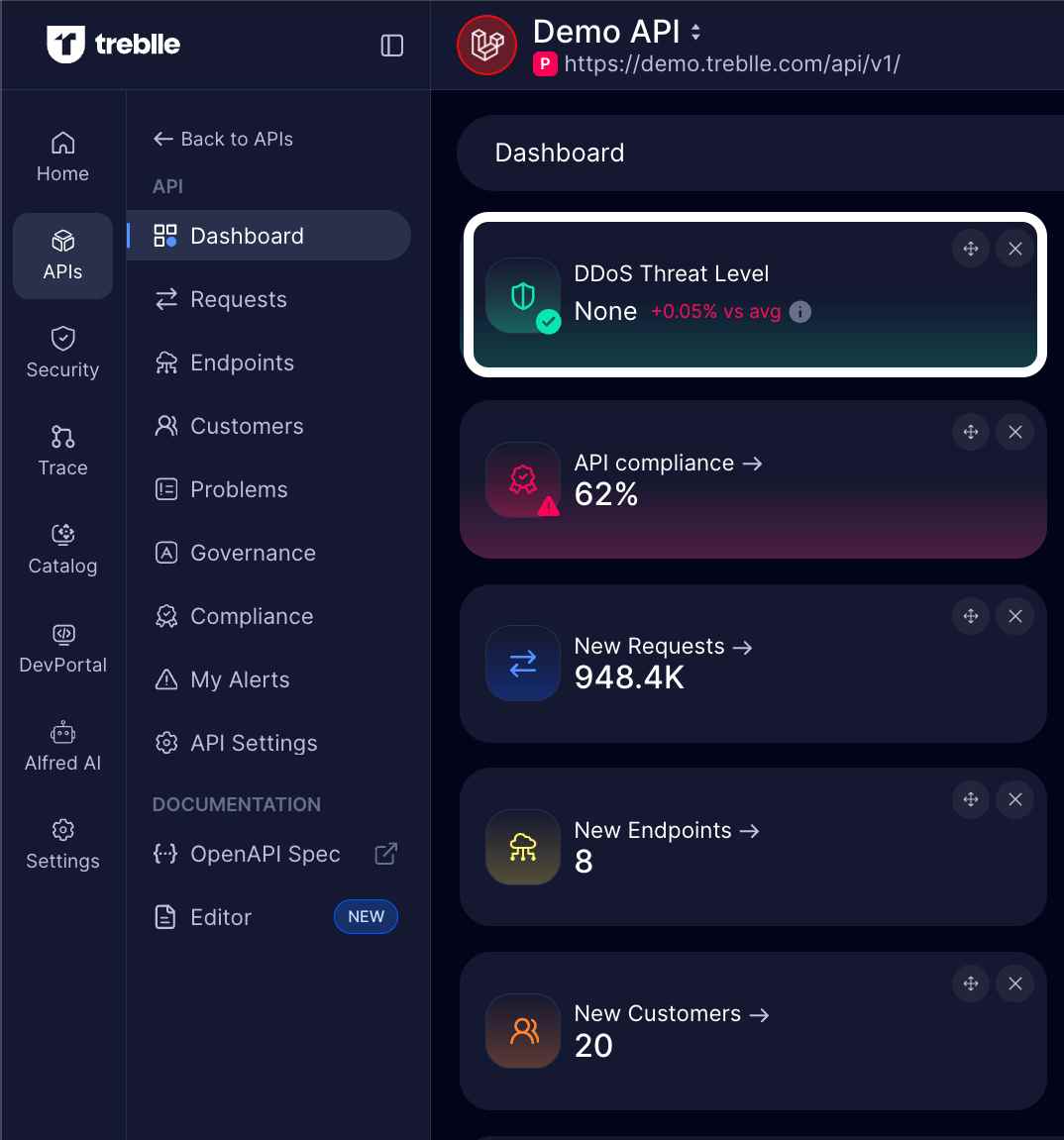

Understanding DDoS Detection

The DDoS Threat Level widget shows:

• Current Status: “None” with green checkmark
• Percentage Change: “+0.05% vs avg” (in red, indicating increase)
• Icon showing shield with checkmark (indicating no threat)

The DDoS widget displays:

• Current Threat Level: None, Low, Medium, or High
• Traffic Comparison: Current vs. average traffic percentage
• Visual Indicator: Color-coded status (green = safe, red = threat)

Detection Method:

• Analyzes traffic in 15-minute intervals
• Compares to daily averages
• Flags unusual request spikes
• Categorizes threat levels automatically

Step 7: Review Risky IPs

Monitor IP addresses flagged as potentially malicious.

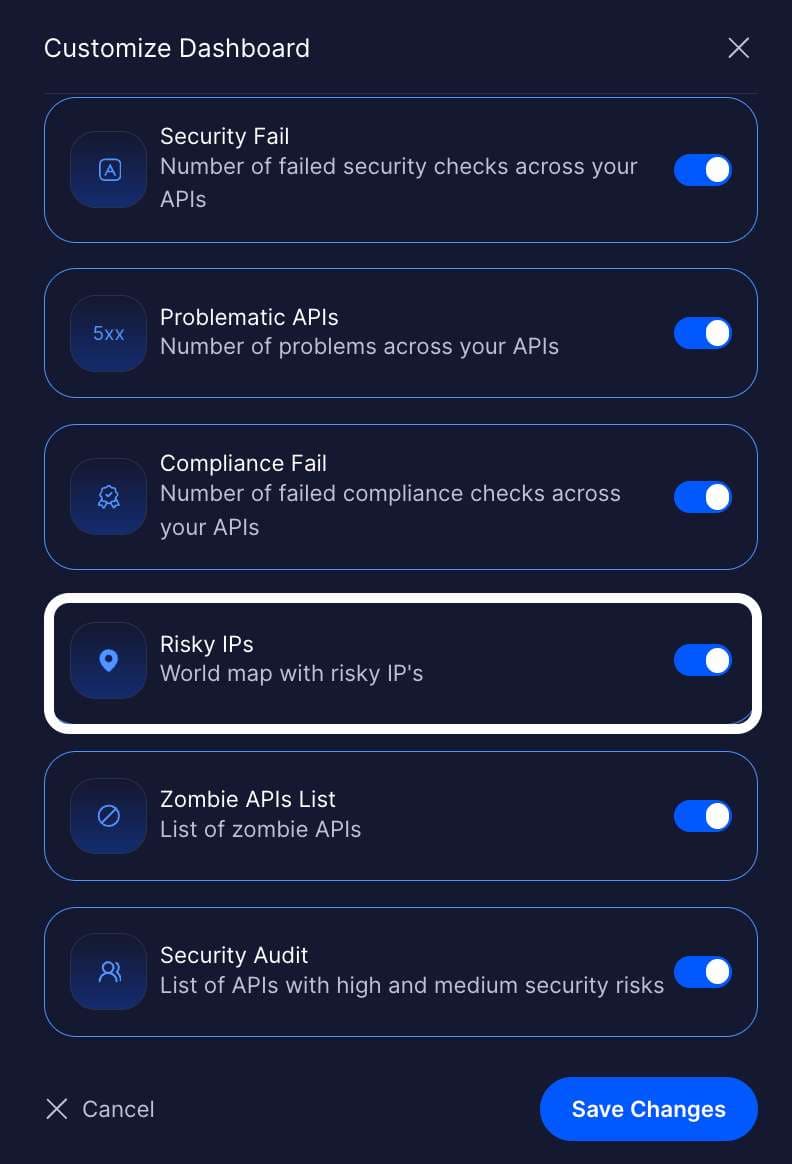

Enable Risky IPs Widget

1. Go to your Security Dashboard
2. Click Customize Dashboard
3. Find and enable the “Risky IPs” widget

The widget option shows:

• Risky IPs: “World map with risky IP’s”
• Toggle to enable/disable
• Click Save Changes

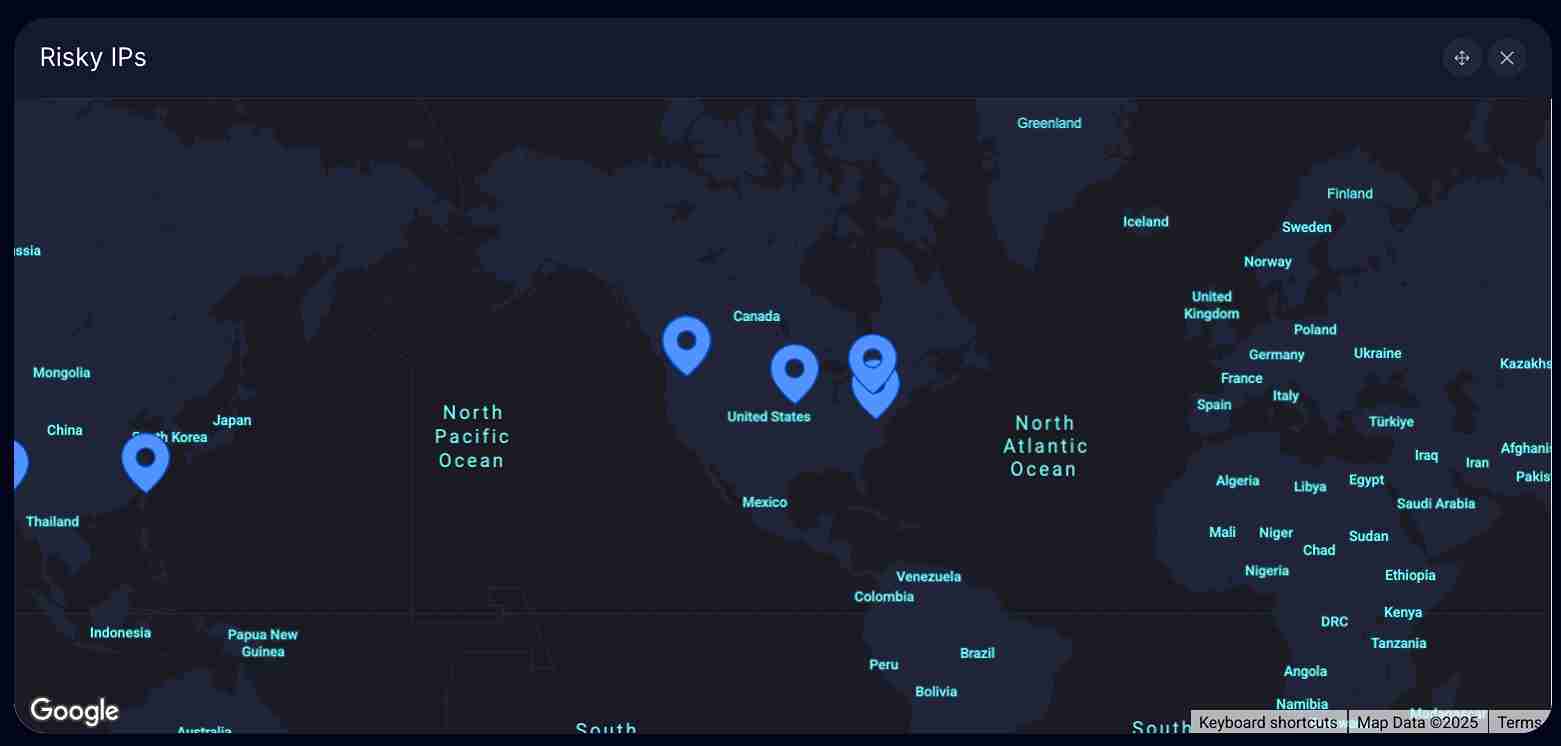

Understanding Risky IPs Map

The Risky IPs widget displays:

• World map showing geographic distribution
• Blue location pins indicating risky IP locations
• Visible locations: South Korea/Japan, Canada, United States, Europe (UK, France, Germany, Poland, Ukraine, etc.)
• Interactive Google Maps interface with zoom controls

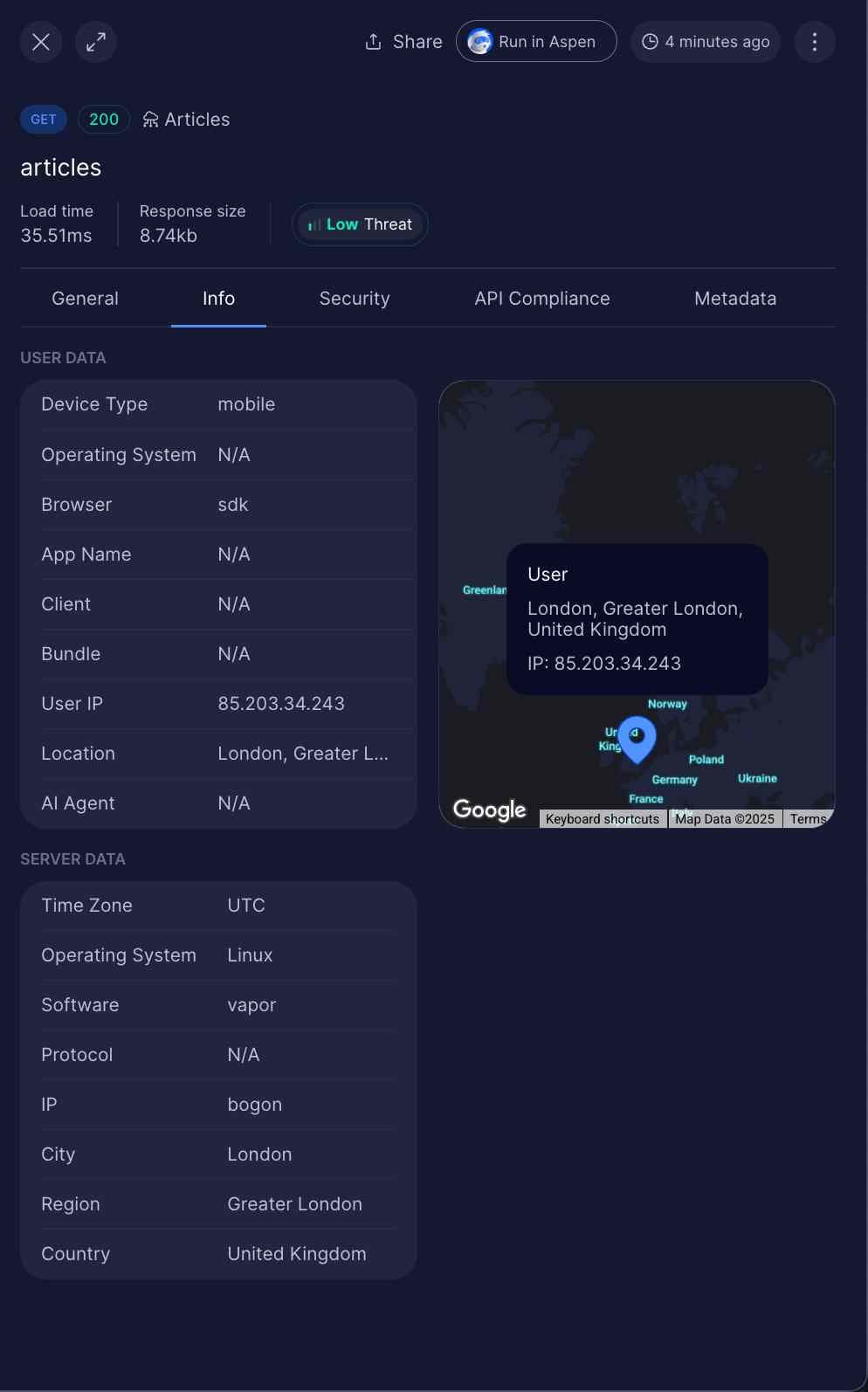

IP Information in Info Tab

The Info tab in individual requests shows:

User Data Section:

• Device Type: mobile
• Operating System: N/A
• Browser: sdk
• App Name: N/A
• Client: N/A
• Bundle: N/A
• User IP: 85.203.34.243
• Location: London, Greater London, United Kingdom
• AI Agent: N/A

Visual Map:

• Interactive Google Maps showing exact location
• User popup displaying: “London, Greater London, United Kingdom” and “IP: 85.203.34.243”
• Blue location pin on map

Server Data Section:

• Time Zone, Operating System, Software, Protocol, IP, City, Region, Country

IP Reputation in Security Tab

To see IP reputation for individual requests:

1. Go to Requests section
2. Click on any request
3. Navigate to Security tab
4. Look for API10 - Unsafe Consumption of APIs - IP reputation check

The IP reputation check shows Pass/Fail status and explains how Treblle evaluates IP trustworthiness.

How IP Reputation Works:

Treblle evaluates IP trustworthiness using:

• Treblle’s own network
• 3rd party services
• Historical behavior analysis
• Geographic risk assessment
• Network reputation
• Activity patterns
• Threat intelligence databases

Step 8: Verify Data Masking Configuration

Data masking ensures sensitive information is secured before being sent to Treblle.

Understanding Data Masking

Important: Data masking happens at the SDK level, not in the Treblle UI. It must be configured when integrating Treblle into your application.

How Data Masking Works

Data masking is integrated into all Treblle SDKs:

• Masking happens at the programming level
• Data is masked before leaving your server

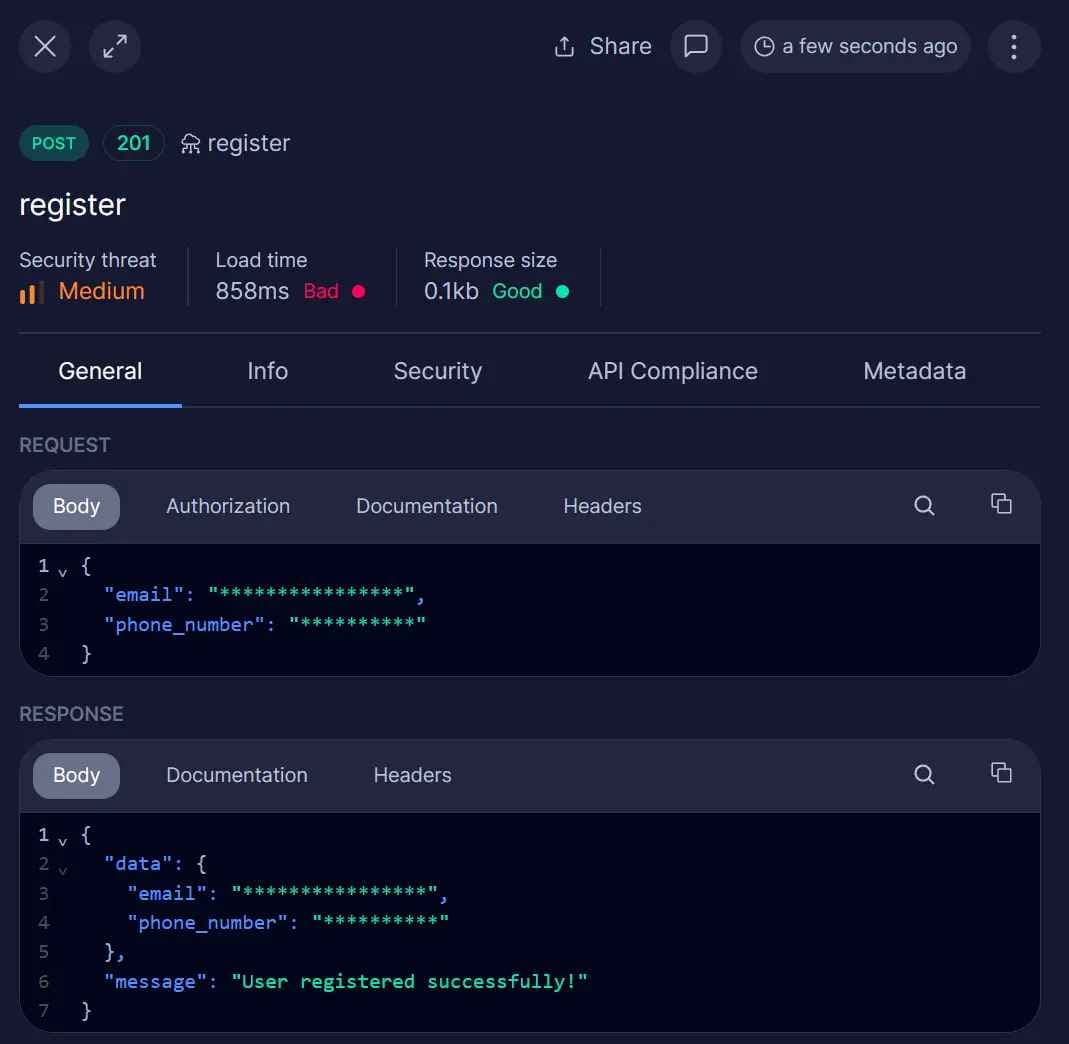

• Sensitive fields are replaced with stars (*****)

Default Masked Fields

Treblle SDKs automatically mask these fields:

• password
• pwd
• secret
• password_confirmation
• passwordConfirmation
• cc
• card_number
• cardNumber
• ccv
• ssn
• credit_score
• creditScore
• api_key

Custom Field Masking

You can define additional fields to mask during SDK integration.

Example: Express.js

app.use(
    treblle({
        apiKey: process.env.TREBLLE_API_KEY,
        sdkToken: process.env.TREBLLE_SDK_TOKEN,
        additionalFieldsToMask: ['email', 'phone_number'],
    })
);

Verify Masking in Treblle

In the Treblle platform, masked fields appear with stars in the request body:

REQUEST:

{
  "email": "*****************",
  "phone_number": "***********"
}

RESPONSE:

{
  "data": {
    "email": "*****************",
    "phone_number": "***********"
  },
  "message": "User registered successfully!"
}

The masked data shows:

• Length matches original data (number of asterisks)
• Value completely hidden
• Applied to both requests and responses

Masking Scope

Data masking applies to:

• Request and response headers
• Request and response data
• Arrays of any depth
• Object keys and values

Special Case - Authorization Header: Only the API key value is masked, not the authentication type.

Example:

Bearer lsGPLl4k6Vc4J0VhnFaMBqetNtn1ofsB

Becomes:

Bearer ********************************

Step 9: Export Compliance Data

Export compliance data for reporting, documentation, and analysis.

Download Compliance Reports

1. In the Compliance section, click the download icon (arrow down) in the top-right
2. Choose your preferred export format:

The dropdown menu shows three options:

• PDF: For formal reports and documentation
• CSV: For data analysis in spreadsheets
• Excel: For detailed analysis with formatting

Uses for Exported Data

PDF Reports:

• Share with stakeholders and management
• Include in regulatory documentation
• Archive for compliance records
• Provide to external auditors

CSV/Excel Exports:

• Analyze compliance trends over time
• Create custom charts and visualizations
• Filter and sort non-compliant requests
• Track remediation progress
• Generate custom reports

Step 10: Manage Team Access

Control who has access to view compliance data in your workspace.

Access control features are available at the workspace level to:

• Control who can view sensitive compliance logs
• Ensure only authorized personnel access compliance data
• Manage team member roles and permissions

Step 11: Custom Governance Rules (Enterprise)

For Enterprise plans, you can upload custom Spectral rule sets to enforce organization-specific standards.

Access Governance Rules

Option 1 - From Settings:

1. Click Settings in left navigation (workspace level)
2. Navigate to Governance Rules section

Option 2 - From Governance Page:

1. Go to Governance in left navigation
2. Click Settings button in top-right

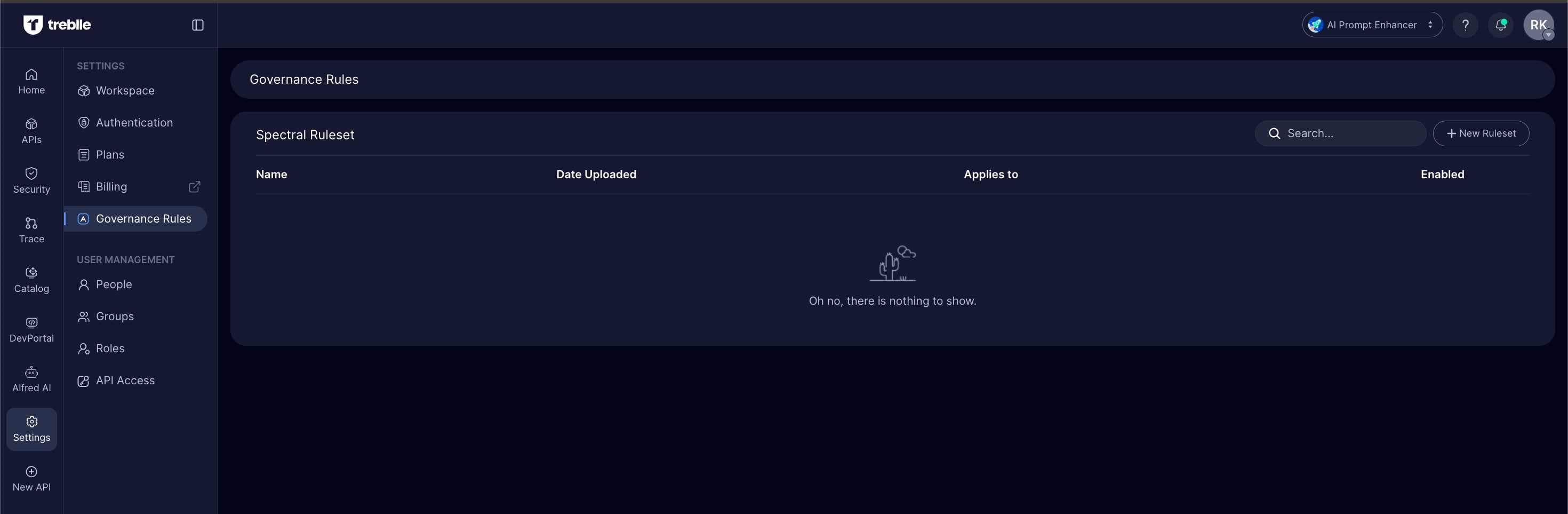

View Governance Rulesets

The Governance Rules page shows:

• Spectral Ruleset section header
• Search bar to find rulesets
• + New Ruleset button in top-right
• Empty state message: “Oh no, there is nothing to show.”

The rulesets table has columns for:

• Name: Ruleset identifier
• Date Uploaded: When added to Treblle
• Applies to: Workspace or specific APIs
• Enabled: Toggle to activate/deactivate

Upload Custom Ruleset

1. Click + New Ruleset button

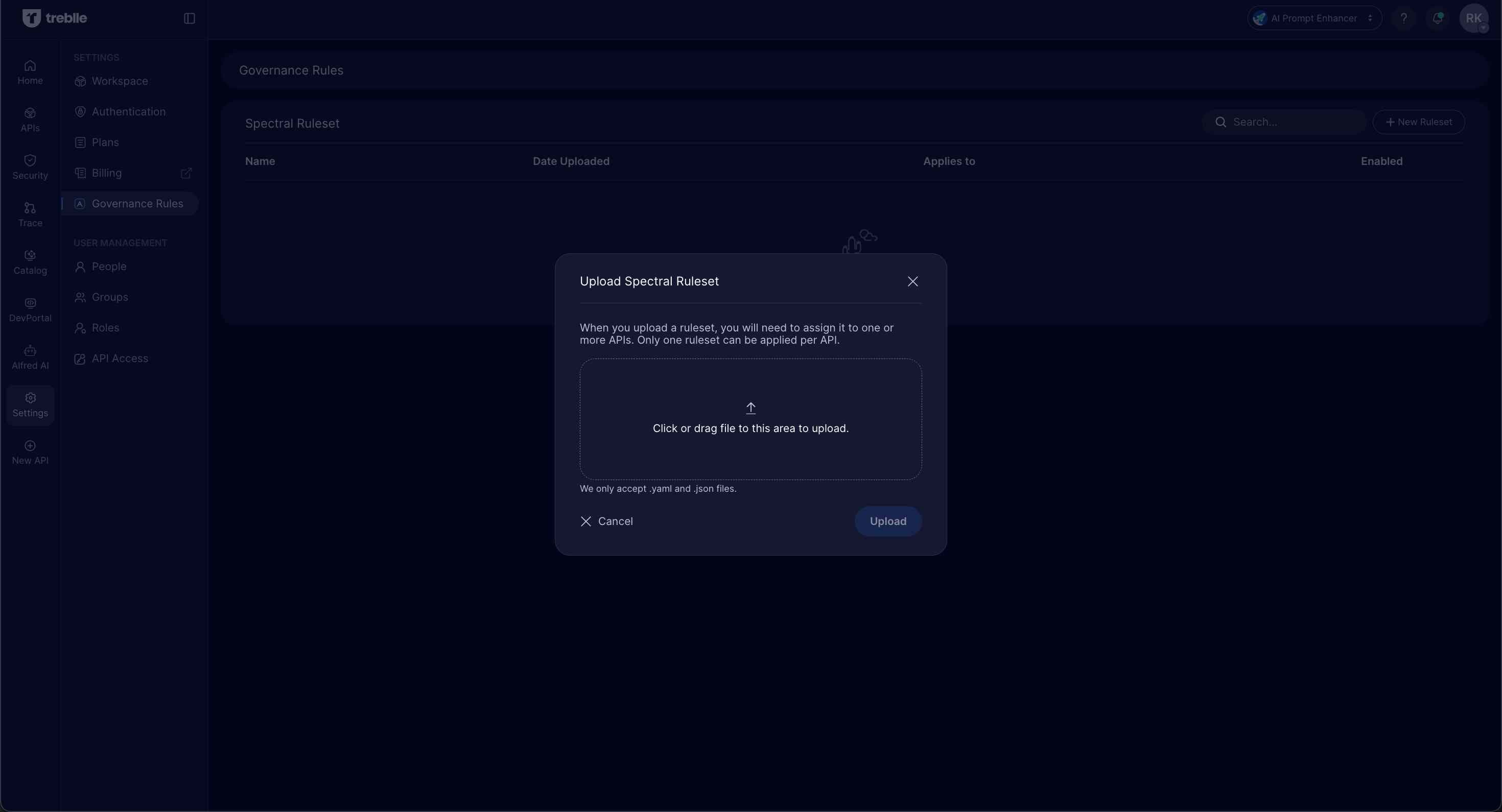

2. Upload dialog appears: “Upload Spectral Ruleset”
3. Instructions shown: “When you upload a ruleset, you will need to assign it to one or more APIs. Only one ruleset can be applied per API.”
4. Drag and drop area: “Click or drag file to this area to upload.”
5. File format: “We only accept .yaml and .json files.”
6. Cancel and Upload buttons at bottom

Ruleset Management

Each ruleset has actions menu:

• Open File: View ruleset contents
• Apply To: Modify API assignments
• Replace: Upload new version
• Delete: Remove ruleset

Important Rules:

• Only one ruleset per API
• One ruleset can apply to multiple APIs
• Custom rules replace default governance checks when applied

Complete Compliance Monitoring Workflow

Here’s how all the features work together:

Best Practices

Daily Activities

Weekly Activities

Monthly Activities

Next Steps

Now that you’ve set up compliance monitoring:

• Schedule daily reviews: Check compliance dashboard every morning
• Set up team access: Invite compliance team members to the platform
• Coordinate with engineering: Share non-compliant requests for remediation
• Track improvements: Use Graph View to measure compliance trends
• Document processes: Create runbooks for handling compliance violations

Your organization now has comprehensive visibility into API compliance status and can proactively address regulatory requirements.
