Governance
The Governance section provides a structured view of your API’s quality across two distinct dimensions: design-time and run-time. Together, they form the Overall Governance Score displayed at the top of the Overview tab. Design-time governance will exclusively use an OpenAPI specification for its calculations, while run-time governance will exclusively use available API taffic on Platform.
Governance is split into two independent perspectives. Design-time governance will not appear if no OpenAPI specification has been added to the API. Run-time governance will not appear if the API is not sending traffic to Treblle.

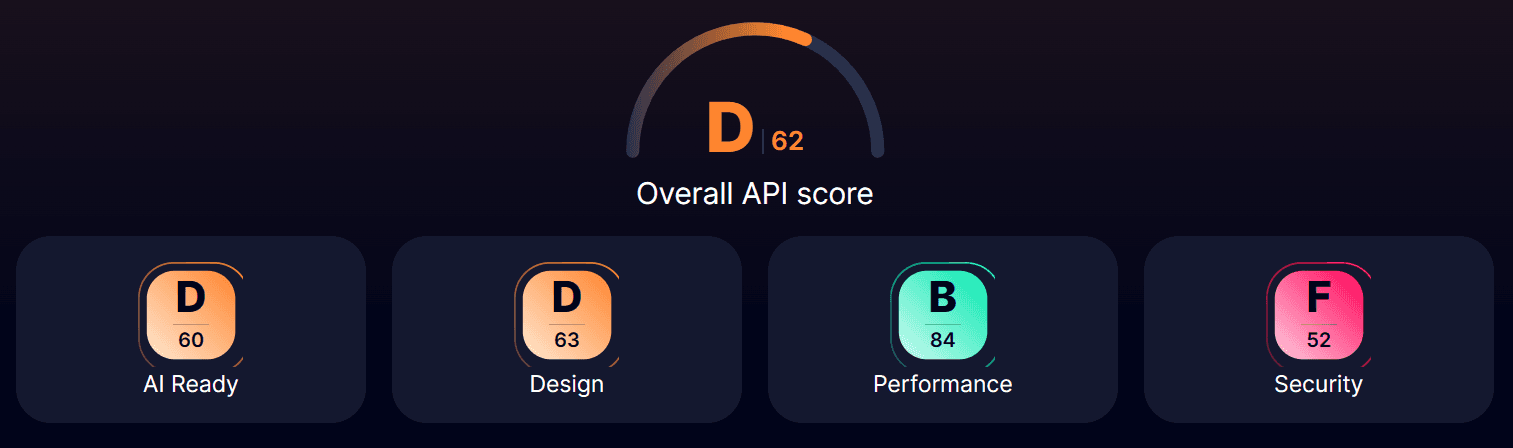

Governance Score
Governance scores are expressed as a letter grade alongside a numeric value out of 100. The same grading scale applies to both design-time and run-time scores:
| Grade | Score Range | Meaning |
|---|---|---|
| A | 90–100 | Excellent — well-structured, complete, and high quality |
| B | 80–89 | Good — minor issues present |
| C | 70–79 | Fair — notable gaps or violations that should be addressed |
| D | 60–69 | Poor — significant issues requiring attention |
| F | 0–59 | Critical — major violations that must be resolved |
Governance Categories
Governance is evaluated across four categories. Not all categories apply to both design-time and run-time:
| Category | Design-Time | Run-Time | Description |
|---|---|---|---|
| Design | ✓ | — | Evaluates structural quality and consistency of the API specification |

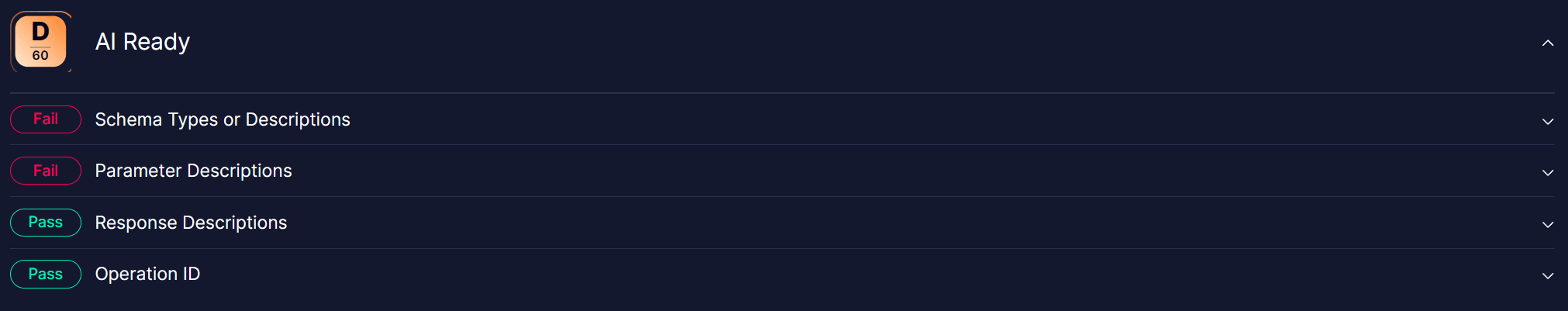

| AI Ready | ✓ | — | Assesses how well the API is documented and structured for AI consumption |
| Performance | ✓ | ✓ | Measures response times, error rates, and efficiency |
| Security | ✓ | ✓ | Checks for security best practices such as authentication, rate limiting, and header usage |
Note here that checks for Performance and Security differs for design-time and run-time.
Design and AI Ready are design-time only categories and will show N/A in any run-time view.
Overview Tab
The Overview tab presents a consolidated view of your API’s governance health. At the top, the Overall Governance Score combines design-time quality and run-time behaviour into a single grade, with a trend indicator showing whether the score is improving or declining.
Below the overall score, two sub-scores are displayed side by side:
- Design-Time Score — derived from the current default OpenAPI specification. Click View Details to navigate to the Design-Time tab.
- Run-Time Score — derived from live traffic observed over the last 7 days. Click View Details to navigate to the Run-Time tab.
The Overview tab also includes four supplementary panels:
- Score by Category shows the current design-time and run-time scores for each governance category in a table. Design and AI Ready categories show N/A in the Run-Time column.
- Design-Time Category Trends lists each category with the number of points changed and the current score over the selected time period.
- Run-Time Category Trends lists the run-time categories (Performance and Security) with point changes and current scores over the selected time period.
- Design-Time Score by OpenAPI Versions lists every specification version with its filename, version number, source, and governance score — providing a historical view of how design-time quality has evolved across versions.
- Run-Time Violations by Category displays a donut chart showing the proportion of violations attributed to each run-time category, along with violation counts and trend indicators.
- Most Design-Time Failed Tests lists the individual tests that have failed most frequently, showing the test name, category, and number of failures.
Design-Time Tab

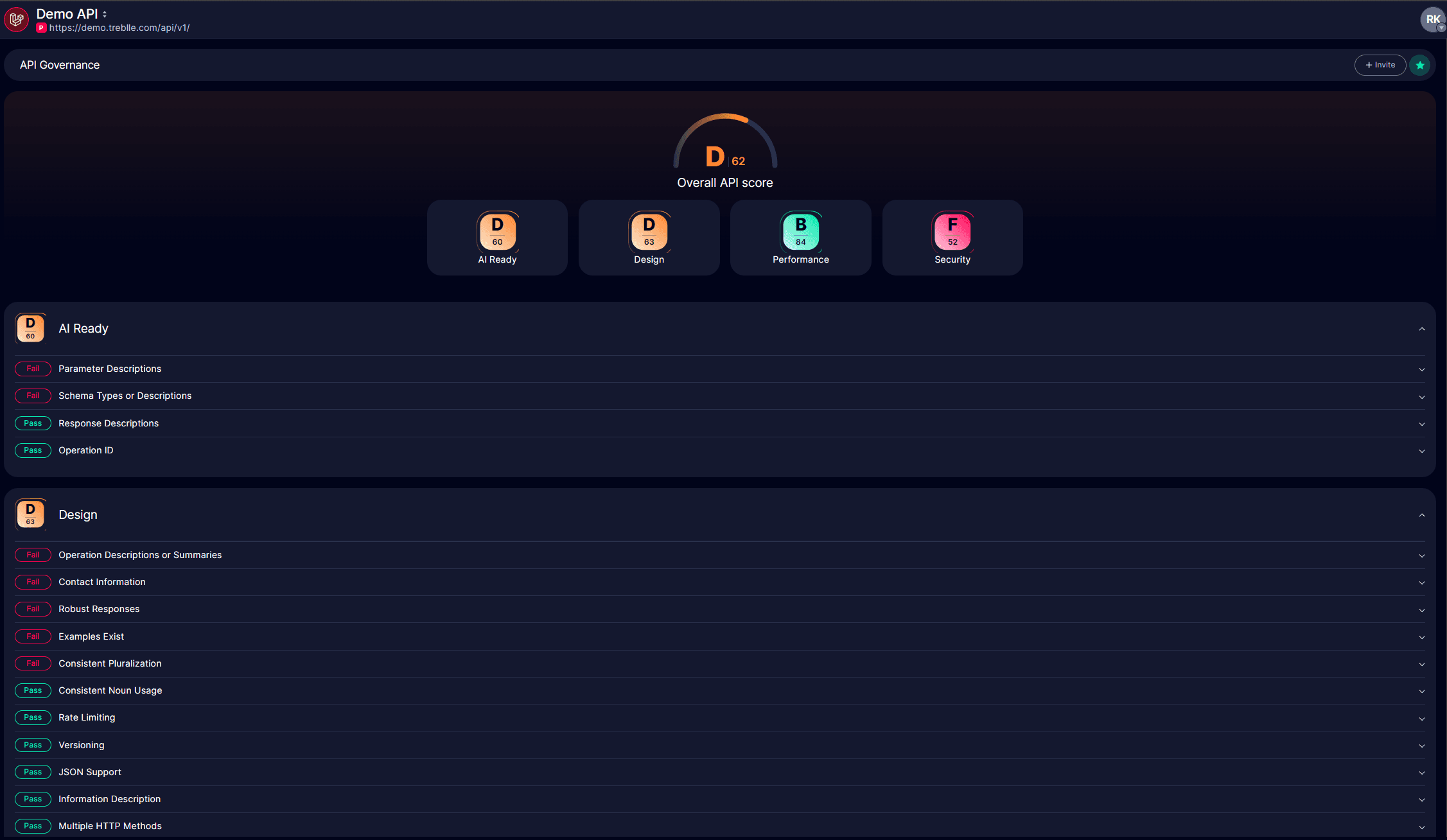

The Design-Time tab provides a detailed breakdown of governance test results for a specific version of your OpenAPI specification. Use the OpenAPI Version dropdown in the top-right corner to select which version to inspect.
The tab displays the Overall Governance Score for the selected version, followed by individual score tiles for each of the four categories: Design, AI Ready, Performance, and Security.

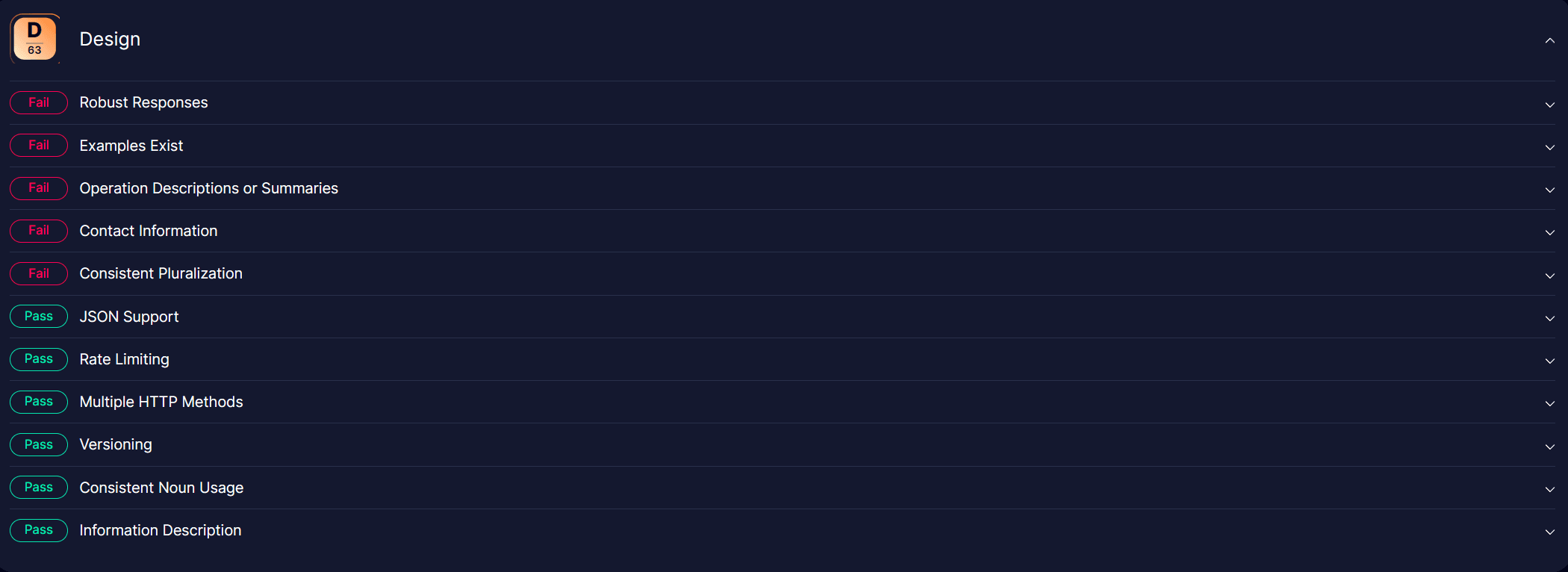

Each category section expands to show a list of individual tests, each marked as Pass or Fail. Clicking on a test row reveals a description of what the test evaluates and why it matters.
Comparing Versions
Click Compare Versions in the top-right to open a side-by-side comparison view. Use the two version dropdowns to select the versions you want to compare. The comparison table shows the result of each test for both versions simultaneously. Directional arrows indicate where a test result has improved or declined between the two versions.
Custom Governance Rules
Design-time governance can be fully customised by providing a Spectral ruleset. This allows teams to define their own governance standards in place of Treblle’s default rules. Custom rulesets are configured via Workspace Settings.
Run-Time Tab
The Run-Time tab evaluates your API’s behaviour based on live traffic observed by Treblle. Use the Time dropdown to filter results by a specific period (e.g. last 7 days). Click Compare Periods to view how run-time governance scores have changed between two time windows.
At the top of the tab, the Overall Governance Score for the selected period is displayed, along with the timestamp of the most recent check. Click Run Now to trigger an immediate re-evaluation against current traffic.
Category scores are shown for Performance and Security, each with a percentage trend indicator and a View Violations link.
Each category expands to show individual tests marked as Pass, Warning or Fail.

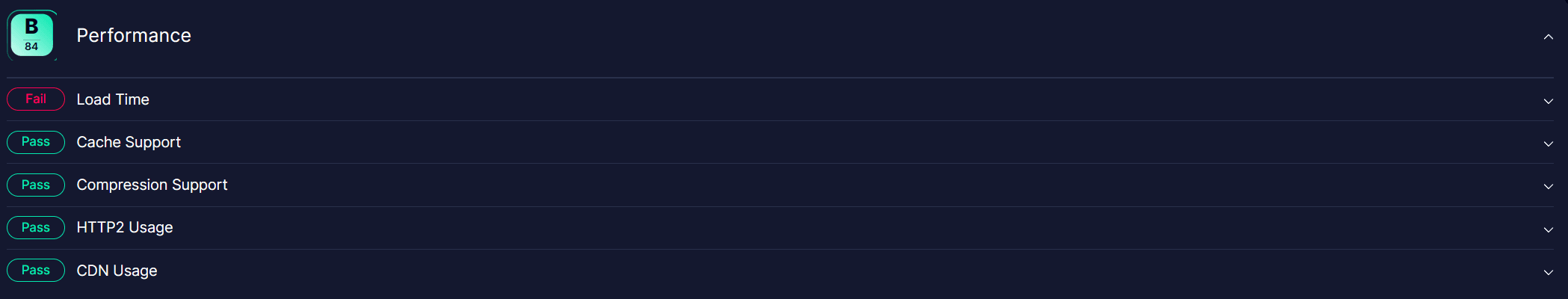

Performance tests include:
- Load Time
- Response Size
- Client Error 400
- Client Errors (401/403)
- Client Error 404
- Client Error 4xx overall
- Client Error 429
- Server Error 500
- Server Error 502/503/504
- Server Errors (5xx)
- Compression
- HTTP/2 Support
Security tests include:
- Consistent Noun Usage
- Consistent Pluralization
- Rate Limiting
- Examples Exist
- Contact Information
- Multiple HTTP Methods
- JSON Support
- Operation Descriptions or Summaries
- Robust Responses
- Versioning
- Information Description
Editing Run-Time Tests
Each category in the Run-Time tab has an Edit button that opens the Edit Tests panel. This panel lists all available tests for that category with toggle switches, allowing you to choose which tests are included in the run-time governance score calculation. Toggle a test on or off as needed, then click Save Changes to apply your selection.
Insights Tab
The Insights tab visualises governance score trends over time through two line charts.
Design-Time Insights
This chart plots governance scores on the vertical axis against OpenAPI specification versions on the horizontal axis. Each line represents a governance category: Overall, Security, Design, AI Ready, and Performance.
Hovering over a data point displays a tooltip showing the version number, upload date, and individual category scores for that version.
Use the View Categories filter to show or hide specific category lines. Use the Versions dropdown to control how many historical versions are included in the chart.
Run-Time Insights
This chart plots governance scores on the vertical axis against calendar dates on the horizontal axis. Each line represents a run-time governance category: Overall, Security, Design, and Performance.
Use the View Categories filter and the Timeframe dropdown to adjust the scope of the chart.
Both charts use the same grade bands on the vertical axis: A (90–100), B (80–89), C (70–79), D (60–69), and F (0–59).
