Managing API Access for External Partners

Scenario: Your company has multiple external partners consuming different APIs. You need to control access, monitor usage, and provide documentation without exposing internal systems.

Features Used:

• Groups
• API Access
• Customer Role
• API Catalog

Overview

Managing external partner integrations at scale requires:

1. Organized access control - Different partners need access to different APIs
2. Automatic data filtering - Partners should only see their own request data
3. Self-service documentation - Partners need API docs without internal system access
4. Usage monitoring - Track which partners are using which APIs

This workflow demonstrates how to use Treblle’s access control features together to create a secure, scalable partner ecosystem.

Step 1: Create Partner Groups

Groups allow you to organize external partners by their access needs, making it easy to grant API access to multiple partners at once.

Navigate to Groups Management

1. Click Settings in the left navigation bar
2. Select User Management from the settings menu
3. Click on the Groups tab

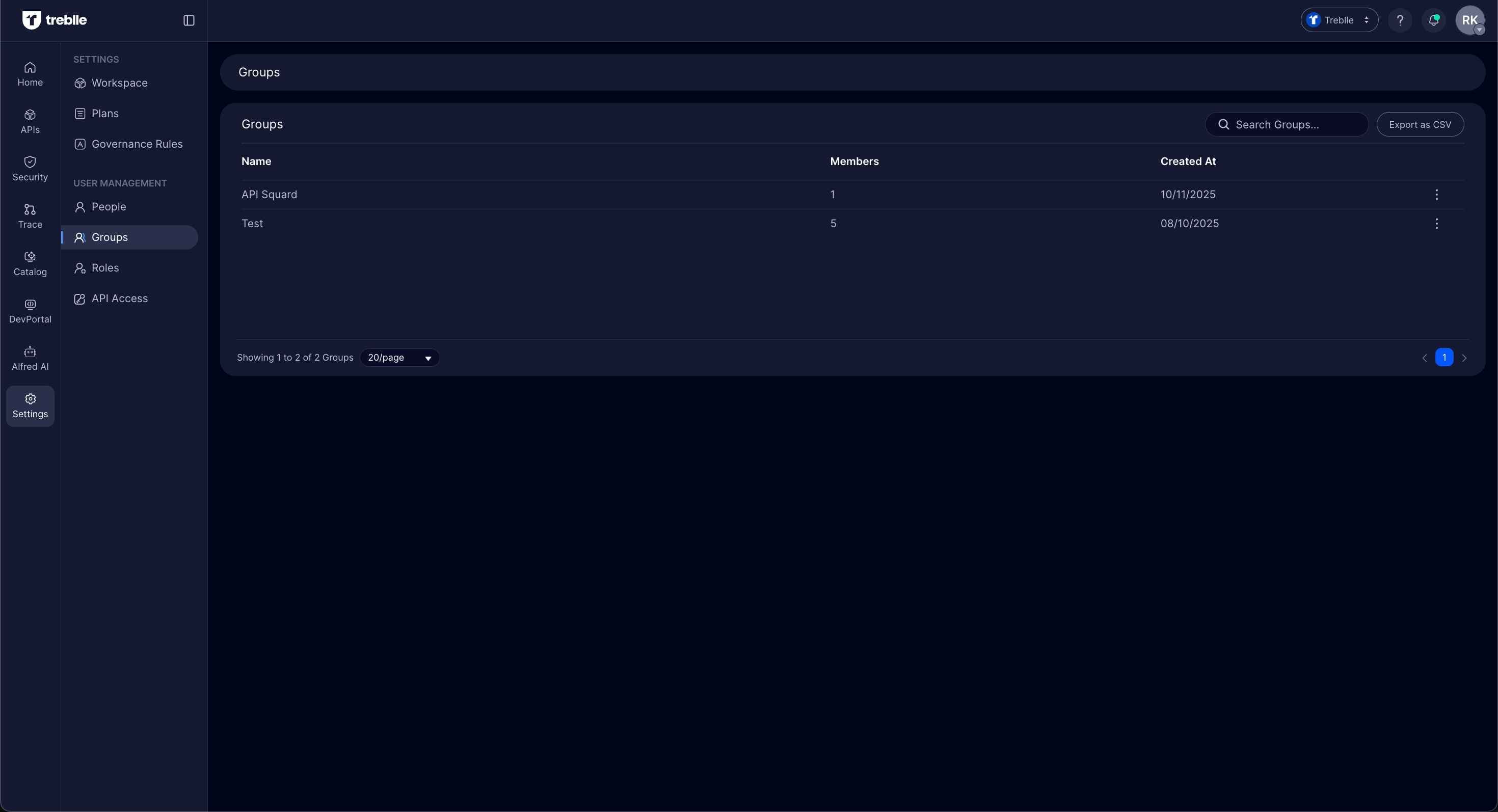

The Groups management page displays all your existing groups with:

• Name: Group identifier
• Members: Number of people in each group
• Created At: When the group was established

Create Logical Group Structure

Click + New Group and create groups that reflect your partner ecosystem:

The group creation dialog allows you to:

• Name: Enter a descriptive group name like “Payment Gateway Partners”
• People: Add initial members during creation (optional)
• Click Create Group to establish the group

Example Group Structure:

Group Naming Best Practices

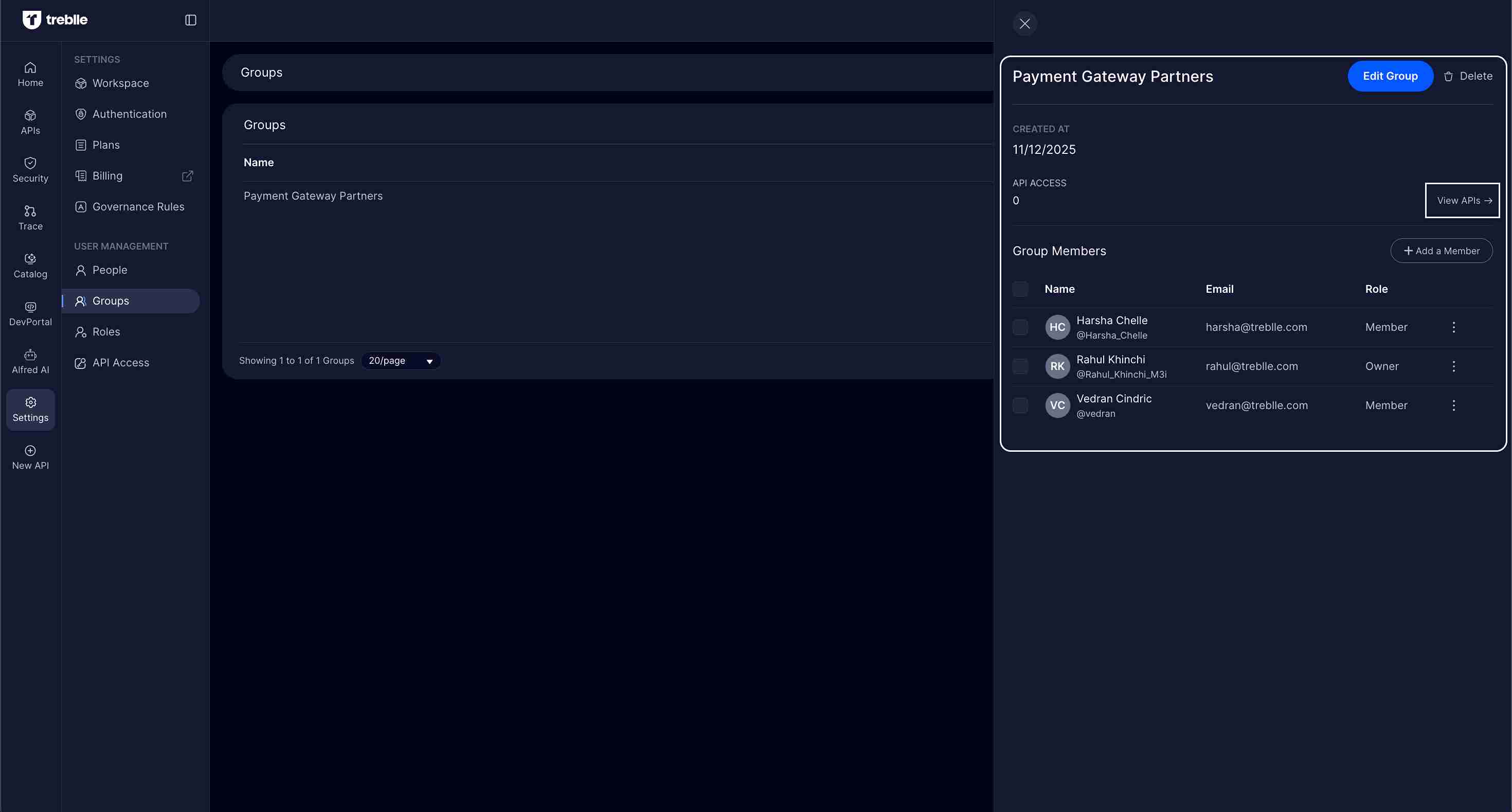

Once created, the group details panel shows:

• Created At: When the group was established (11/12/2025)
• API Access: Number of APIs this group can access (0 initially, configured in Step 2)
• Group Members: All current members with their roles and email addresses
• Actions: Edit Group or Delete options

For Each Group, Define:

• Group Name: Clear, descriptive identifier
• Description: Purpose and typical use cases
• Access Level: Which APIs this group should access

Step 2: Configure API Access by Group

Once groups are created, connect them to specific APIs. This creates automatic access control - anyone added to a group inherits its API permissions.

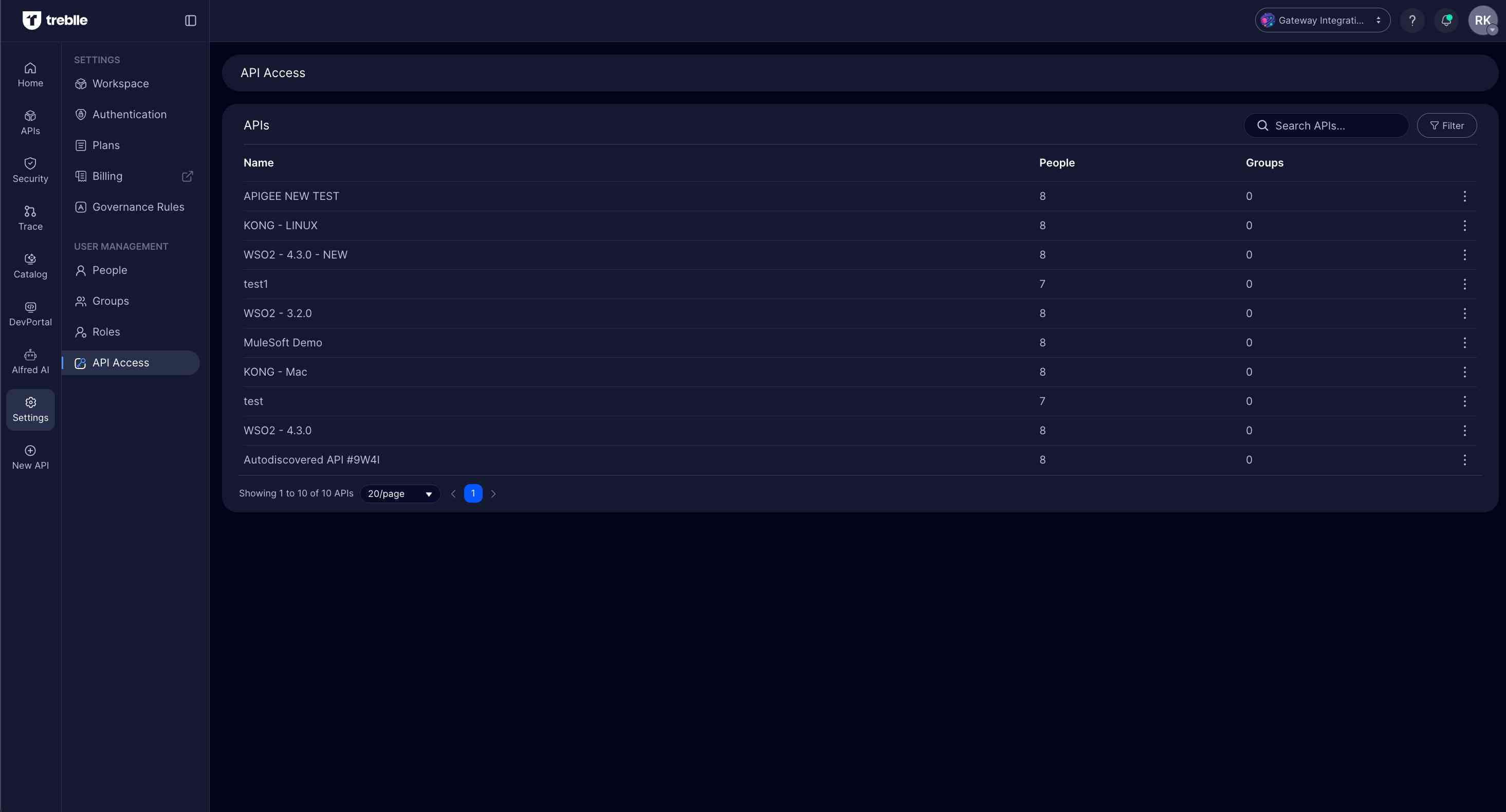

Navigate to API Access Settings

1. Go to User Management in Settings
2. Click on the API Access tab
3. You’ll see a list of all your APIs

Assign Groups to APIs

For each API you want to share with partners:

1. Select the API from the list (e.g., “Payment API”)
2. Click View API Access to open the access management panel
3. Navigate to the Groups section within the access panel
4. Click + Add to assign groups
5. Select the relevant partner group (e.g., “Payment Gateway Partners”)
6. Save your changes

What Happens Automatically

When you assign a group to an API:

Step 3: Invite Partners with Customer Role

Now that groups and API access are configured, invite your external partners to the platform.

Navigate to People Management

1. Go to Settings → User Management
2. Click on the People tab
3. Click Email Invite or + Add User

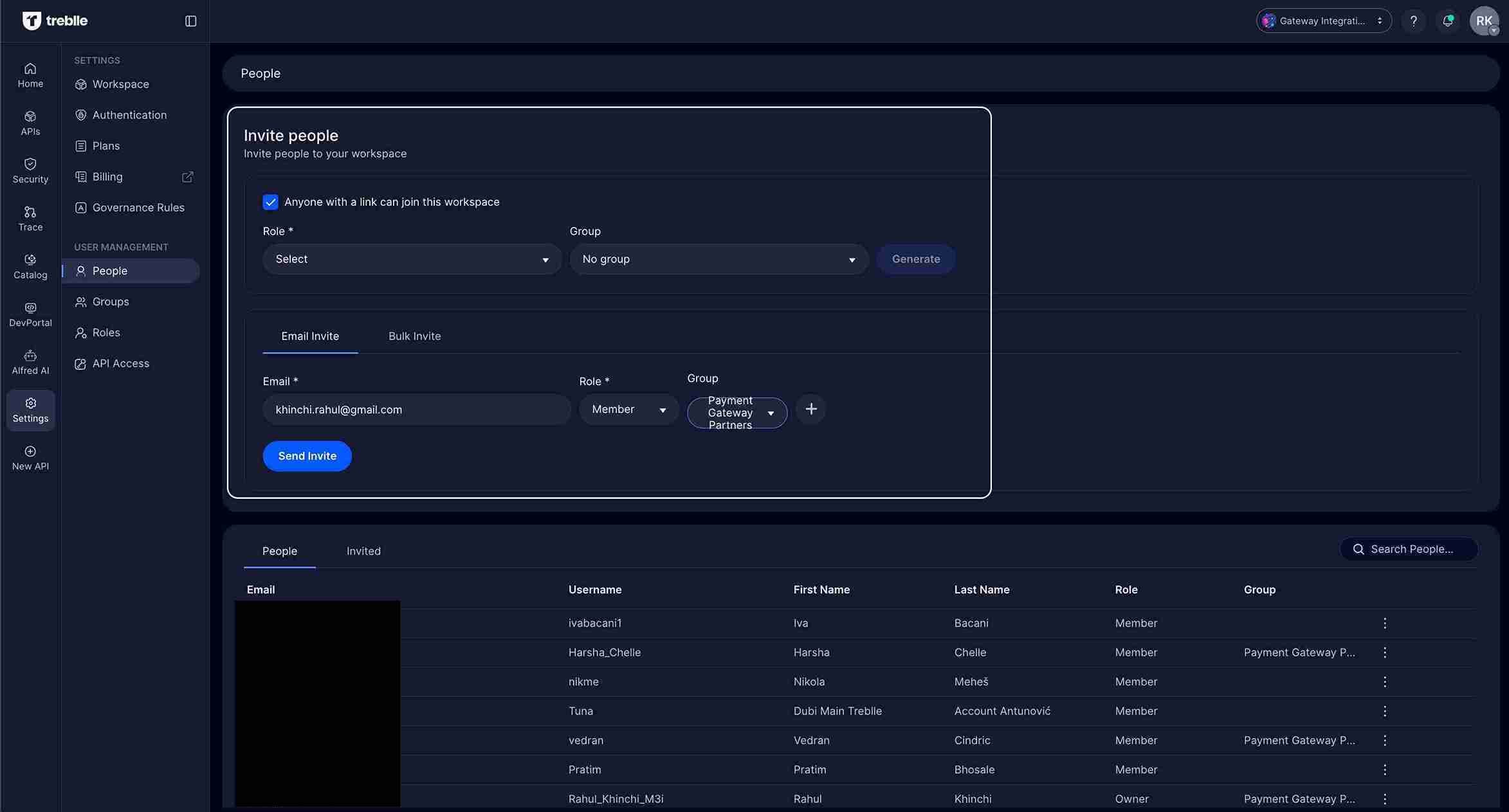

Complete the Invitation Form

Fill in the partner’s details:

Required Fields:

• Email Address: Partner contact’s work email
• Role: Select Customer (critical - this role has limited permissions)
• Group: Select the appropriate partner group
• First Name / Last Name: Partner contact details

Understanding the Customer Role

The Customer role is specifically designed for external partners:

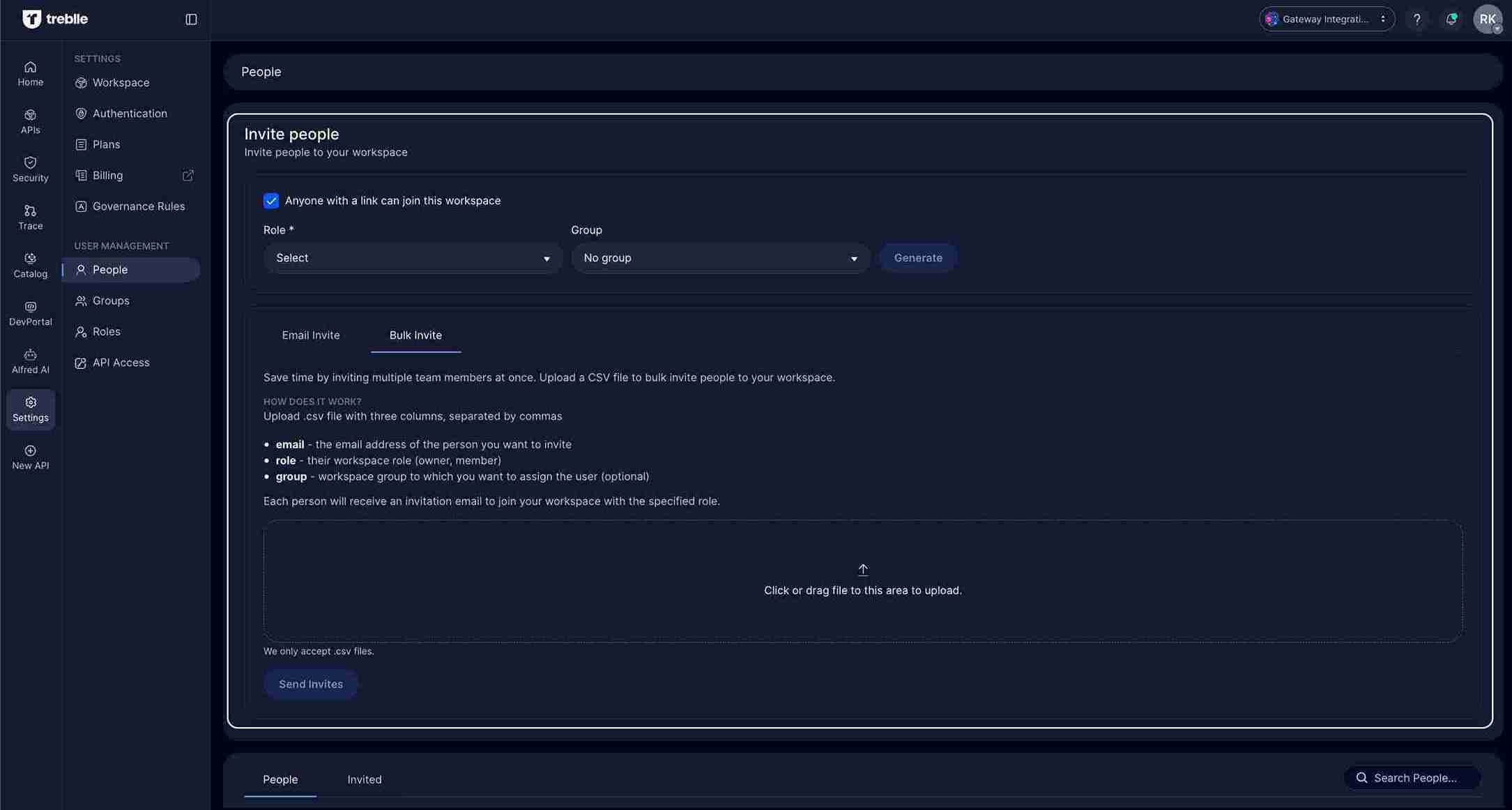

Bulk Invitations

For onboarding multiple partners at once:

1. Click Bulk Invite in the People management section
2. Upload a CSV file with columns: email, role, group
3. The interface shows instructions:
   • Upload .csv file with three columns (email, role, group)
   • Each person receives an invitation email
4. Click Send Invites after uploading

CSV Format Example:

email,role,group
partner1@stripe.com,member,Payment Gateway Partners
partner2@paypal.com,member,Payment Gateway Partners
analyst@segment.com,member,Analytics Platform Partners

Managing Existing Partners

To change a partner’s access:

1. Find them in the People list

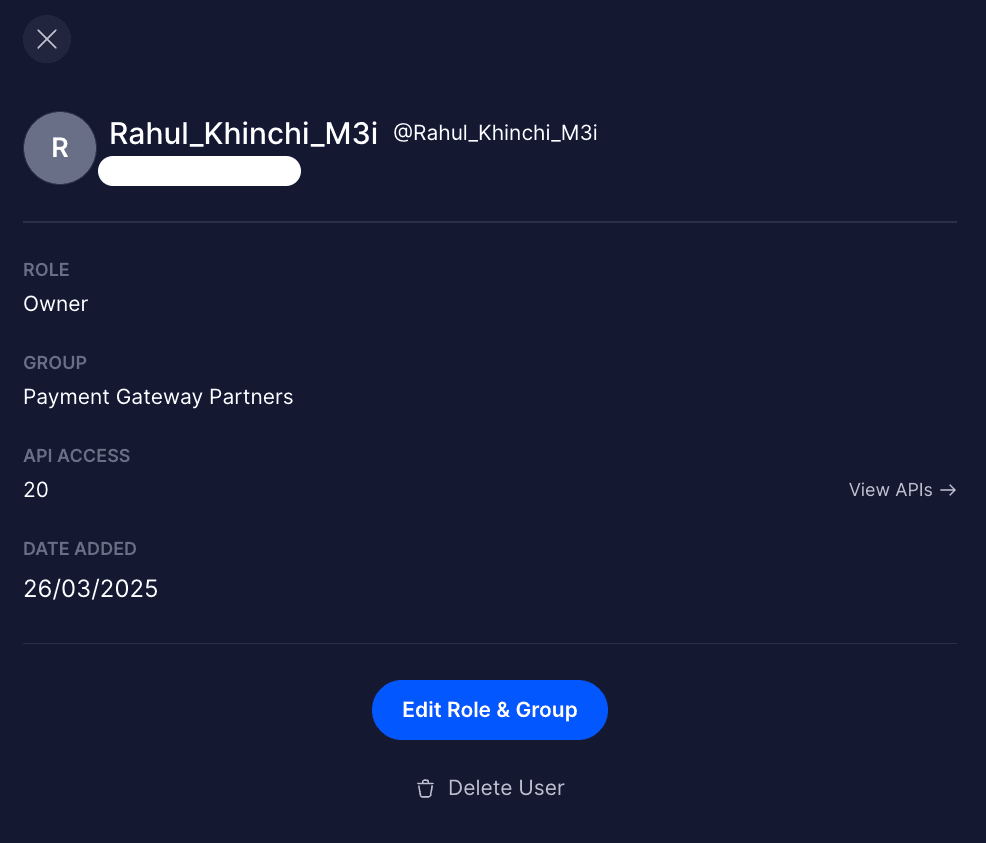

2. Click on their name to view their profile, which shows:
   • Role: Current workspace role (Owner in this example)
   • Group: Which partner group they belong to (Payment Gateway Partners)
   • API Access: Number of APIs they can access (20)
   • Date Added: When they were invited (26/03/2025)
3. Click Edit Role & Group to modify their access
4. Changes take effect immediately

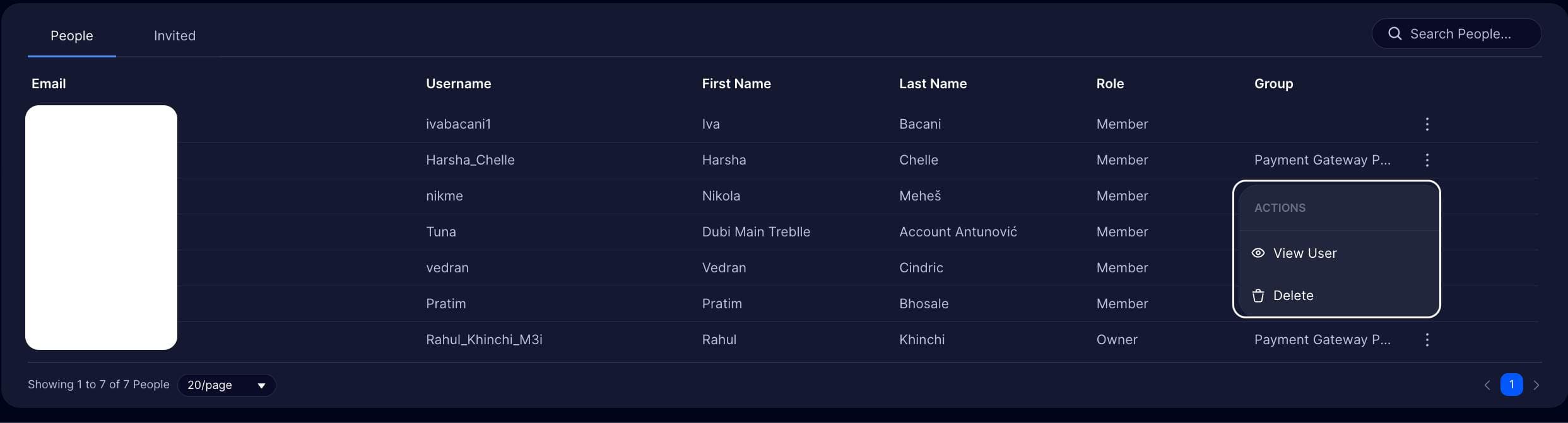

The People management table provides:

• Complete list of all workspace members
• Group column showing each member’s group assignment
• Actions menu (⋮) for each user with options to:
  • View User: See detailed profile
  • Delete: Remove user access

Step 4: Ensure Customer ID Tracking

For Treblle to automatically filter data per partner, your API must pass customer identifiers in requests.

Implement Customer ID in Metadata

Add the customer identifier to the treblle-metadata header in your API:

// Node.js / Express Example
app.use((req, res, next) => {
  // Extract customer ID from JWT token, API key, or session
  const customerId = extractCustomerFromAuth(req);

  // Set Treblle metadata
  req.headers['treblle-metadata'] = JSON.stringify({
    'user-id': customerId,  // Maps to customer in Treblle
    'Plan': determineCustomerPlan(customerId),
    'Region': determineCustomerRegion(customerId)
  });

  next();
});

# Python / Flask Example
from flask import request

@app.before_request
def add_treblle_metadata():
    # Extract customer ID from auth
    customer_id = extract_customer_from_auth(request)

    # Set Treblle metadata
    request.headers['treblle-metadata'] = json.dumps({
        'user-id': customer_id,
        'Plan': determine_customer_plan(customer_id),
        'Region': determine_customer_region(customer_id)
    })

// PHP / Laravel Example
namespace App\Http\Middleware;

class TreblleMetadata
{
    public function handle($request, $next)
    {
        // Extract customer ID from auth
        $customerId = $this->extractCustomerFromAuth($request);

        // Set Treblle metadata
        $request->headers->set('treblle-metadata', json_encode([
            'user-id' => $customerId,
            'Plan' => $this->determineCustomerPlan($customerId),
            'Region' => $this->determineCustomerRegion($customerId)
        ]));

        return $next($request);
    }
}

Metadata Best Practices

Verification

Test that customer IDs are being tracked correctly:

1. Make a test API request as a partner
2. Go to Requests in Treblle
3. Open the request details
4. Check the Headers tab first
5. Find the treblle-metadata header (line 11 in the example above)
6. Verify it contains the customer ID in JSON format:

{
  "user-id": "Microsoft",
  "Plan": "Platinum Plan"
}

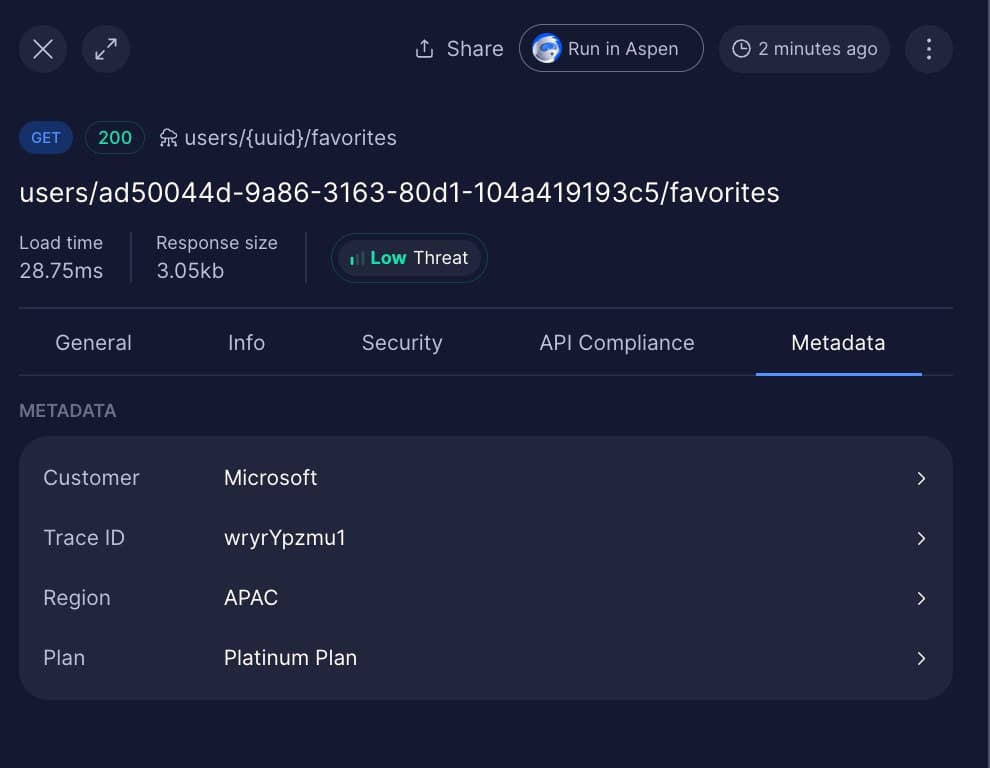

Then switch to the Metadata tab:

The Metadata tab displays the parsed values from the header:

• Customer: Microsoft
• Trace ID: wryrYpzmu1
• Region: APAC
• Plan: Platinum Plan

Why This Matters

Customer ID tracking enables:

• Data isolation: Partners see only their requests
• Usage analytics: Track which partners use which endpoints
• Billing accuracy: Measure API consumption per partner
• Support efficiency: Quickly filter to a specific partner’s requests
• Security monitoring: Detect suspicious patterns per partner

Step 5: Publish APIs to API Catalog

The API Catalog is your external-facing API documentation portal. Publishing APIs here makes them discoverable and accessible to your partners.

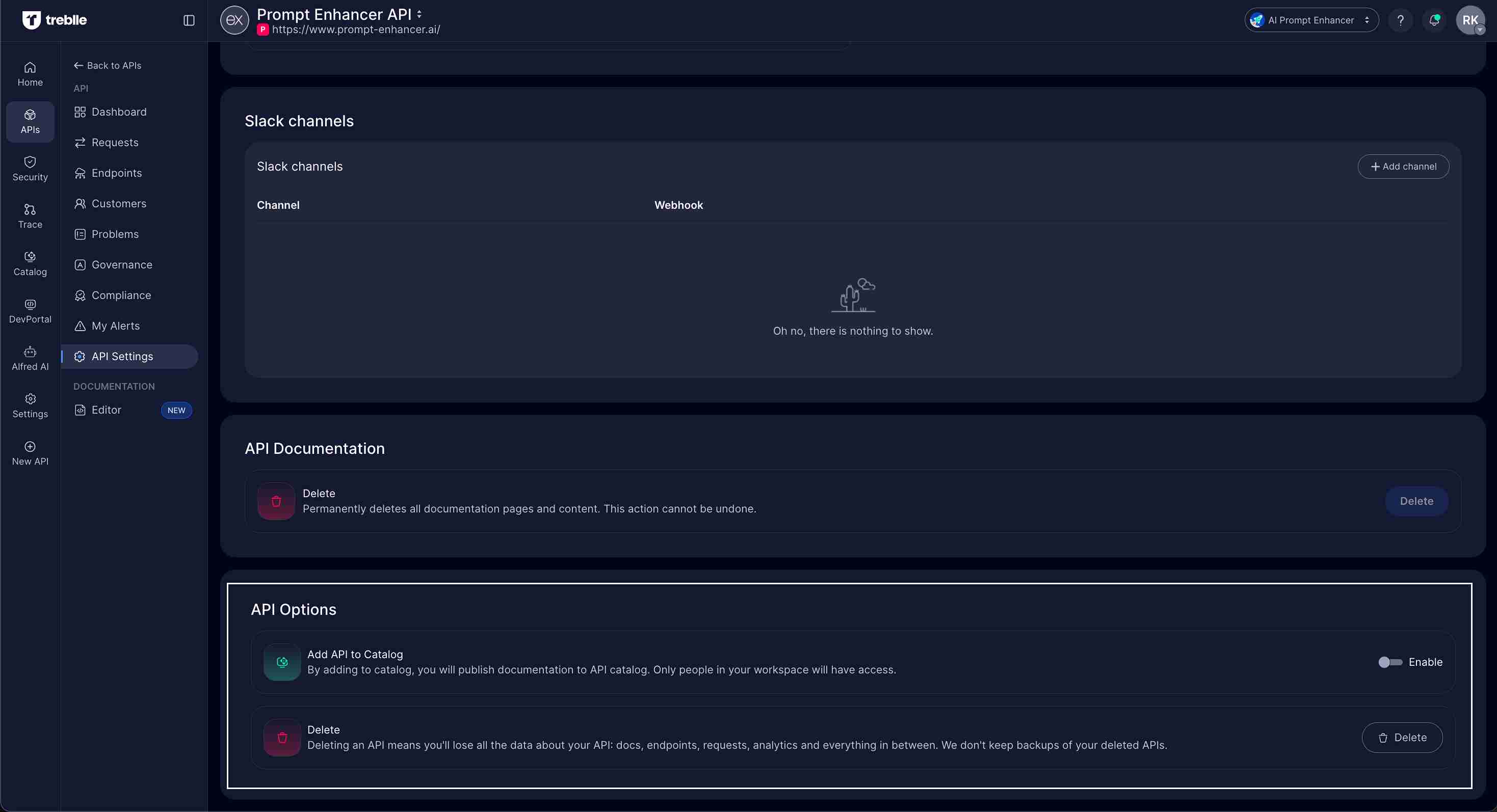

Navigate to API Settings

1. Select an API from your APIs list
2. Click API Settings (gear icon)
3. Scroll to the API Options section

Configure Publication Details

Before publishing, configure:

API Category (required)

• Logical grouping for navigation
• Examples: “Payment APIs”, “Analytics APIs”, “User Management APIs”, “Integration APIs”

Tags (recommended)

• Searchable keywords
• Examples: “OAuth”, “REST”, “WebSocket”, “v2”, “Beta”, “Deprecated”

Description (required)

• Clear summary of API purpose
• Include primary use cases and target audience

Version (recommended)

• Semantic versioning (v1.0, v2.1)
• Helps partners understand API maturity

Click Publish

1. Review all fields for accuracy
2. Click the Publish button
3. The API is now visible in your API Catalog

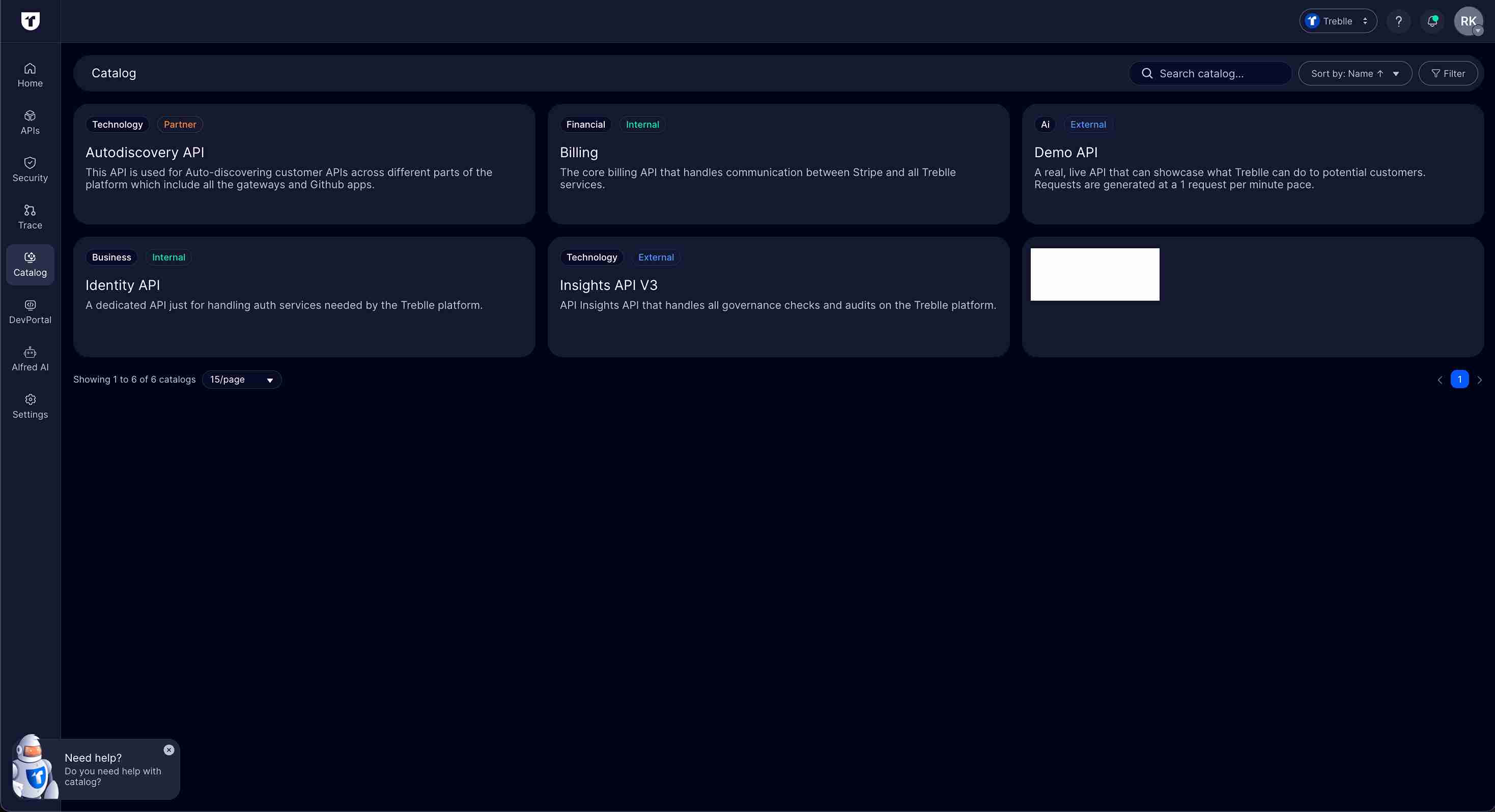

What Partners See in API Catalog

After publication, partners with appropriate group access can:

Browse Published APIs:

• Filter by category (Payment, Analytics, etc.)
• Search by tags (OAuth, REST, v2)
• View API versions and status (Stable, Beta, Deprecated)

Access Full Documentation:

• Complete endpoint list with descriptions
• Request/response schemas
• Code examples in multiple languages
• Authentication guides
• Error handling documentation

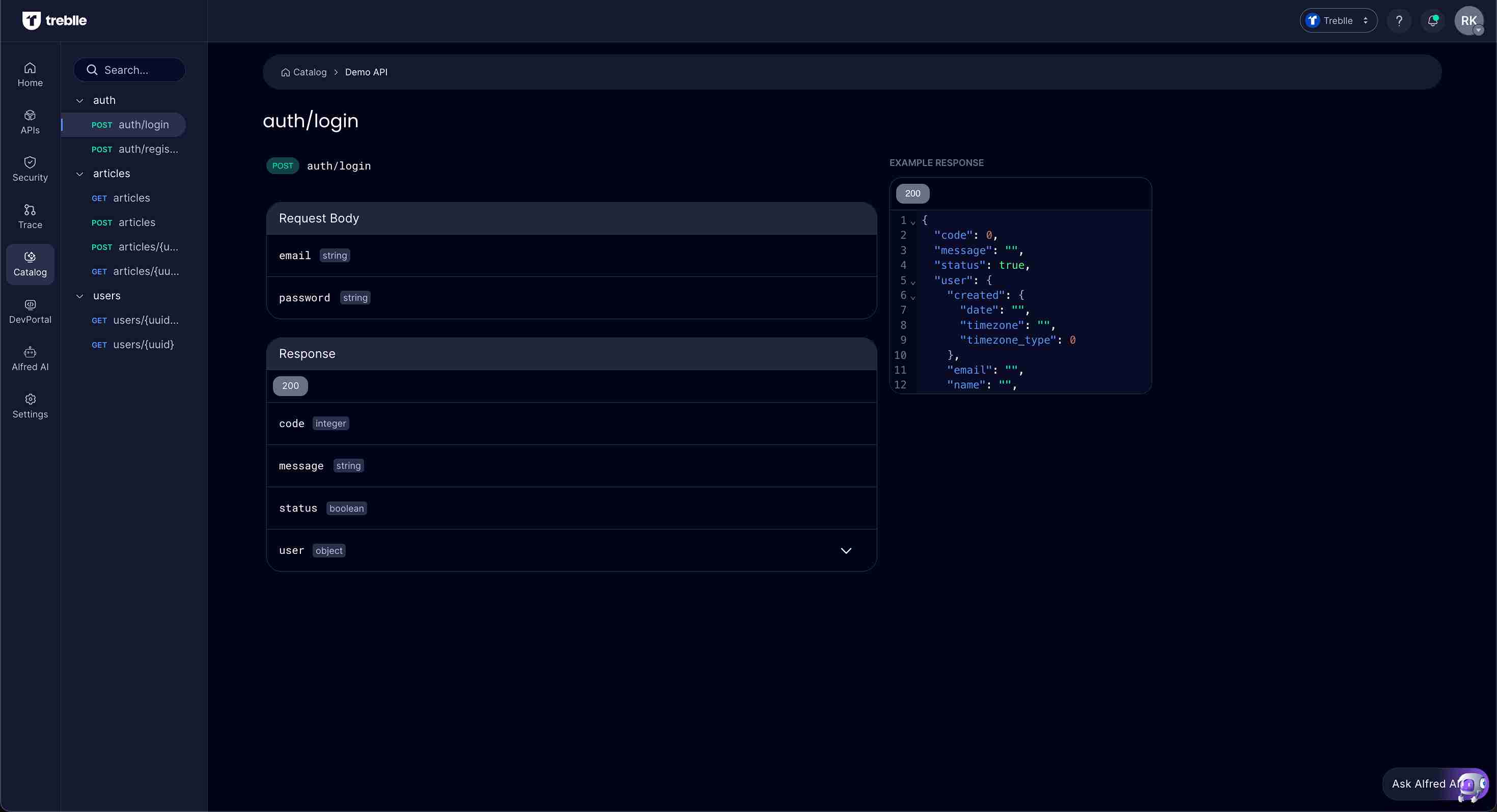

When partners click into a specific endpoint (like auth/login shown above), they see:

• HTTP Method and Path: POST auth/login clearly displayed
• Request Body: Field names and types (email: string, password: string)
• Response Structure: Expected response format with status code (200)
• Example Response: Full JSON response showing the data structure
• Sidebar Navigation: Browse all endpoints organized by resource (auth, articles, users)

Test Endpoints (Optional):

• Interactive API testing directly in catalog
• Pre-filled authentication from their customer account
• Real requests to your APIs (if testing is enabled)

Monitor Their Usage:

• Link to Observability portal
• See their own API requests
• Track their integration health

Organizing Multiple APIs

As your catalog grows, maintain organization:

Managing Publication Status

You can unpublish or update APIs at any time:

To Unpublish:

1. Go to API Settings
2. Click Unpublish in API Options
3. Partners immediately lose catalog access (but existing integrations continue working)

To Update:

1. Edit category, tags, or description
2. Changes appear immediately in catalog
3. No need to republish

The Metadata tab in Treblle displays the extracted business context:

• Customer: Microsoft (automatically filtered for this partner)
• Trace ID: wryrYpzmu1 (for distributed tracing)
• Region: APAC (geographic context)
• Plan: Platinum Plan (subscription tier)

This information comes directly from the treblle-metadata header you set in your API code.

Complete Partner Access Workflow

Here’s how all the pieces work together:

Partner Onboarding Flow

During Integration

1. Partner implements your API using documentation from catalog
2. Your API tracks customer ID in treblle-metadata header
3. Requests flow through Treblle with proper customer tagging
4. Partner views their data in Observability portal - sees only their requests
5. You monitor all partners from your internal Treblle workspace

Troubleshooting Common Issues

Partners Can’t See Their Requests

Problem: Partner logs into Observability portal but sees no data

Diagnosis:

1. Check if your API is setting treblle-metadata with user-id
2. Verify the customer ID in metadata matches their account ID
3. Confirm they’ve made requests since being added

Solution:

// Verify customer ID is being set
console.log('Treblle Metadata:', req.headers['treblle-metadata']);
// Should show: {"user-id":"partner-company-name",...}

// Check customer account ID in Treblle matches
// If partner company is "Stripe Inc" but metadata says "stripe",
// requests won't be associated correctly

Partners See Wrong APIs in Catalog

Problem: Partner has access to APIs they shouldn’t see, or can’t see APIs they need

Diagnosis:

1. Check which group they’re assigned to (Settings → People)
2. Review that group’s API access (Settings → API Access)
3. Verify the APIs are published (not just internal)

Solution:

1. Remove partner from incorrect group
2. Add them to correct group
3. Verify group has access to required APIs
4. Changes take effect immediately - have partner refresh catalog

Invitations Not Received

Problem: Partner says they didn’t receive invitation email

Diagnosis:

1. Check spam/junk folders
2. Verify email address is correct in People list
3. Check if invitation expired (invites are valid for 7 days)

Solution:

1. Resend invitation from People list
2. If repeatedly fails, check email deliverability settings
3. As alternative, manually create account and share login link

Customer ID Not Tracking

Problem: All requests show up under “Unknown” customer

Diagnosis:

1. Check if treblle-metadata header is being set
2. Verify user-id field exists in metadata
3. Confirm customer ID format matches customer accounts

Solution:

// Debug middleware
app.use((req, res, next) => {
  const metadata = req.headers['treblle-metadata'];

  if (!metadata) {
    console.error('Missing treblle-metadata header');
  } else {
    const parsed = JSON.parse(metadata);
    if (!parsed['user-id']) {
      console.error('Missing user-id in metadata');
    } else {
      console.log('Customer ID:', parsed['user-id']);
    }
  }

  next();
});

Next Steps

Now that you’ve set up partner access management:

• Create partner onboarding docs: Build a comprehensive guide partners receive upon invitation
• Set up automated alerts: Configure notifications for partner error spikes or unusual activity
• Build internal runbooks: Document how to provision, modify, and revoke partner access
• Establish SLAs: Define response times for partner support issues
• Plan for scale: Design your group structure to accommodate 10x growth
